Genuine Girling Master Cylinder PE-001-30 range

PE Racing — Australian motorsport component manufacturer, specialising in competition-grade pedal assemblies and braking systems for physical race vehicle use. Backed by patented engineering, comprehensive technical documentation, and a decade-long track record in serious competition.

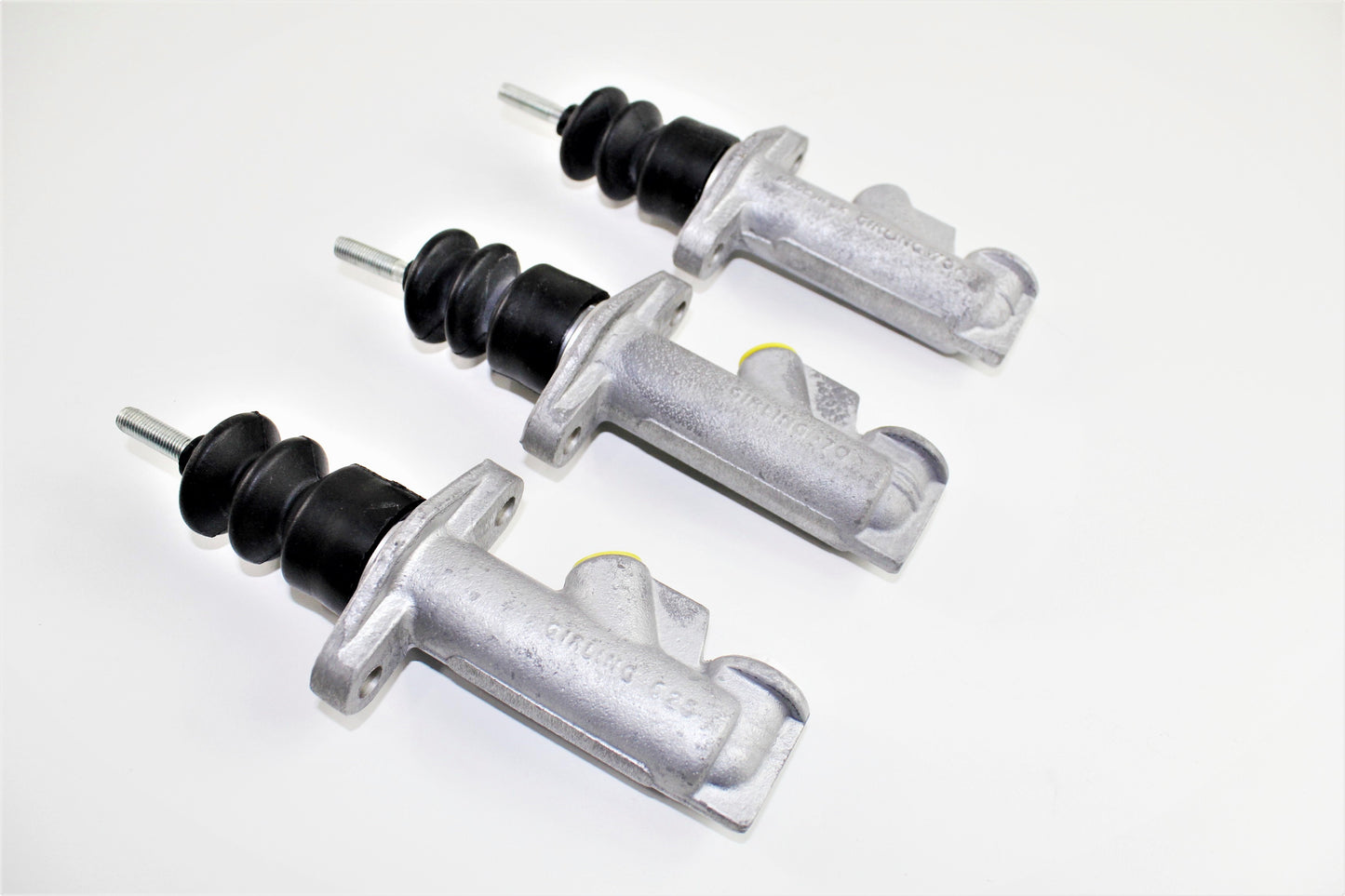

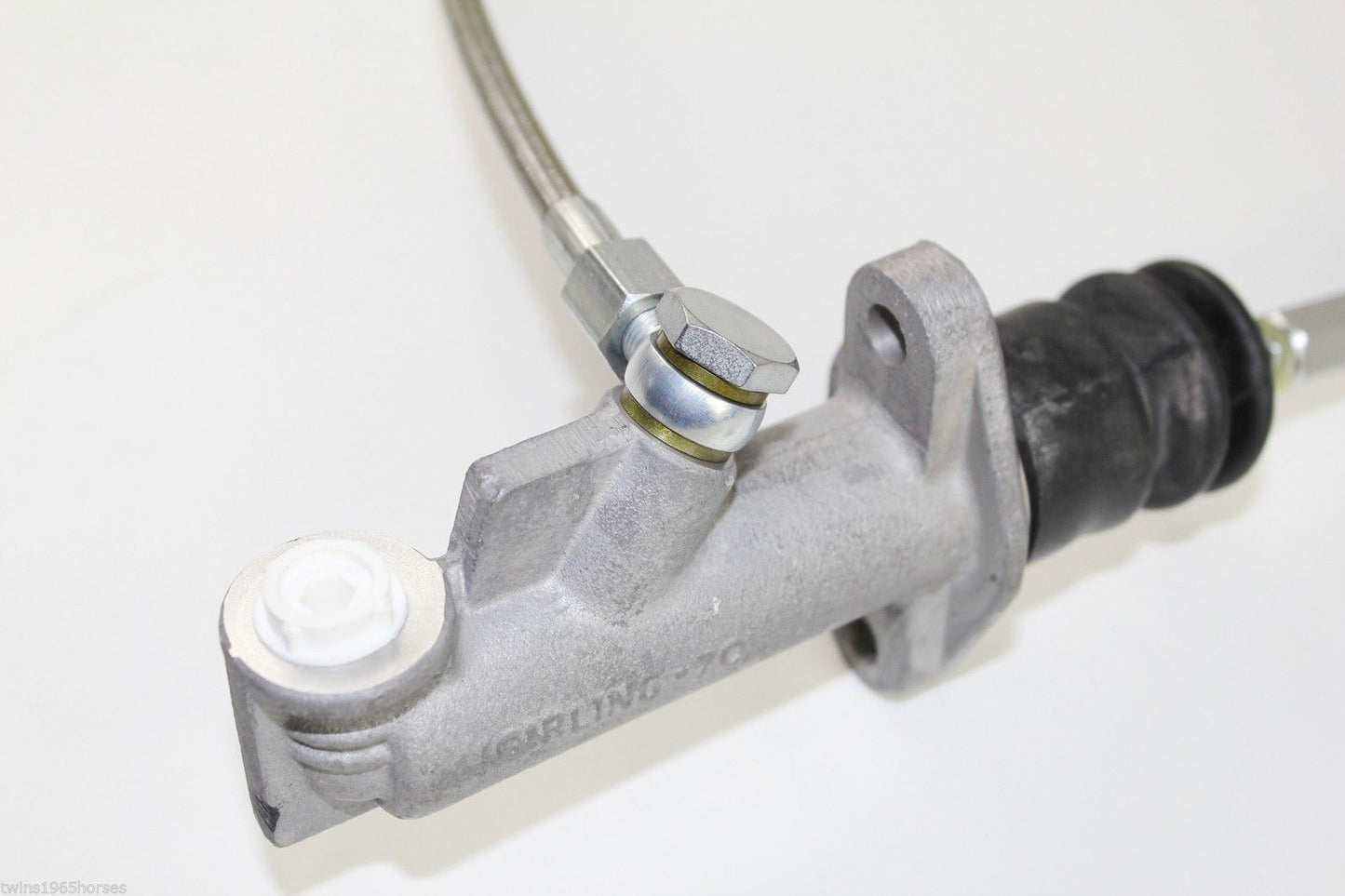

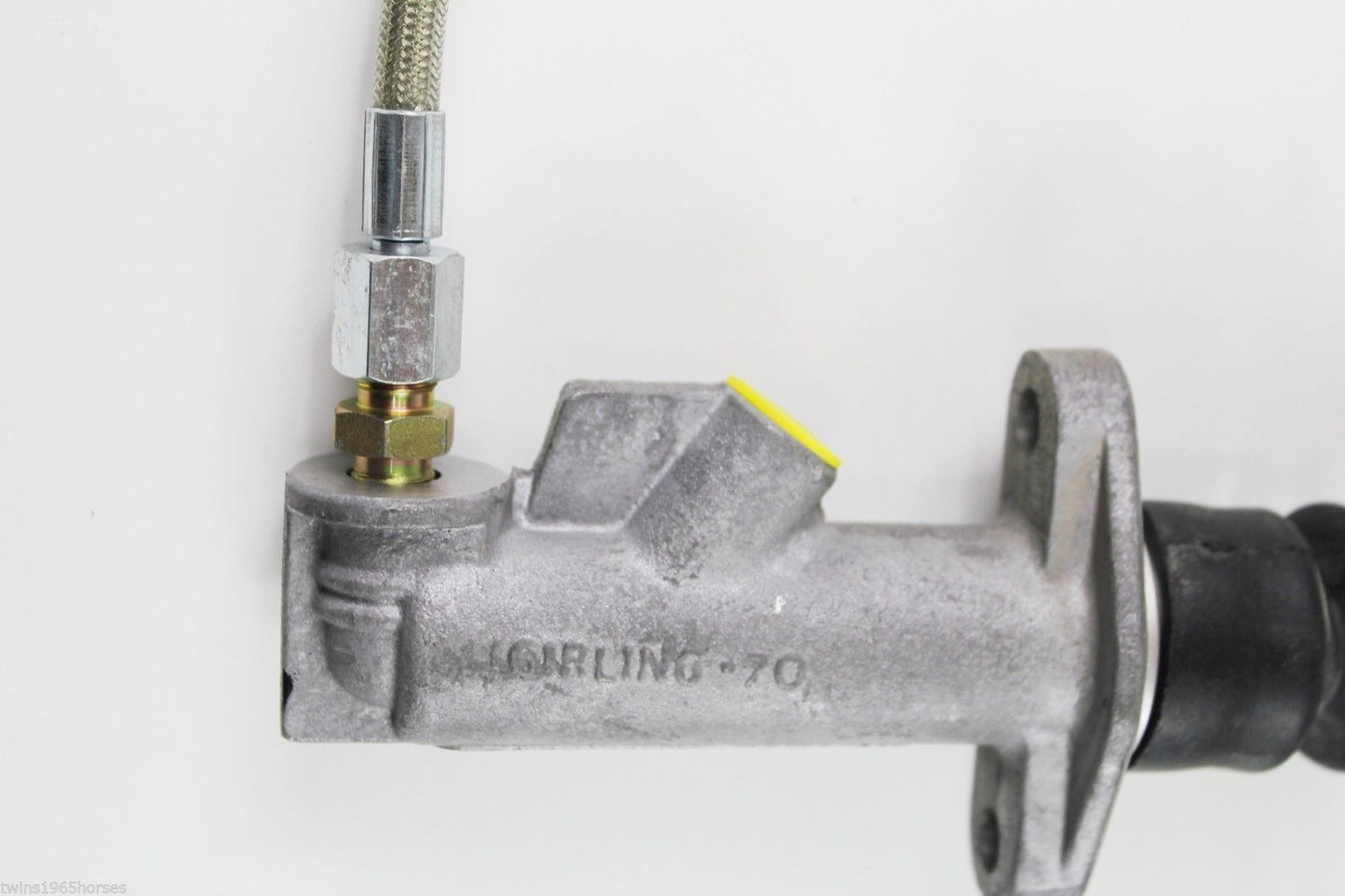

• Genuine Girling master cylinders — manufactured in the UK by Girling, a globally trusted name in motorsport braking. High quality alloy construction, tested to extreme pressures and proven reliable in demanding race conditions
• Suitable for ABS systems — compatible with modern ABS-equipped race vehicles, making these a versatile choice across a wide range of competition applications

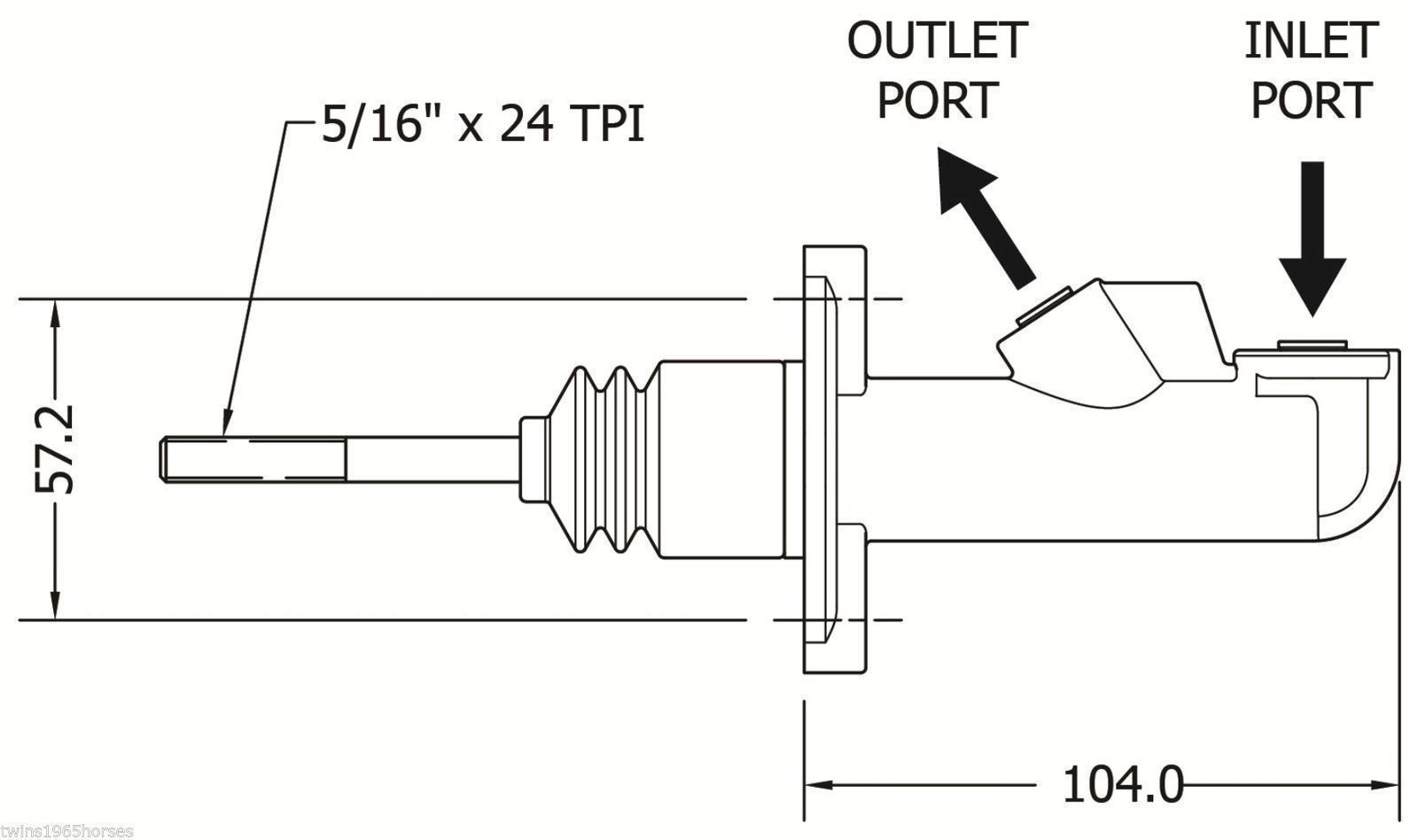

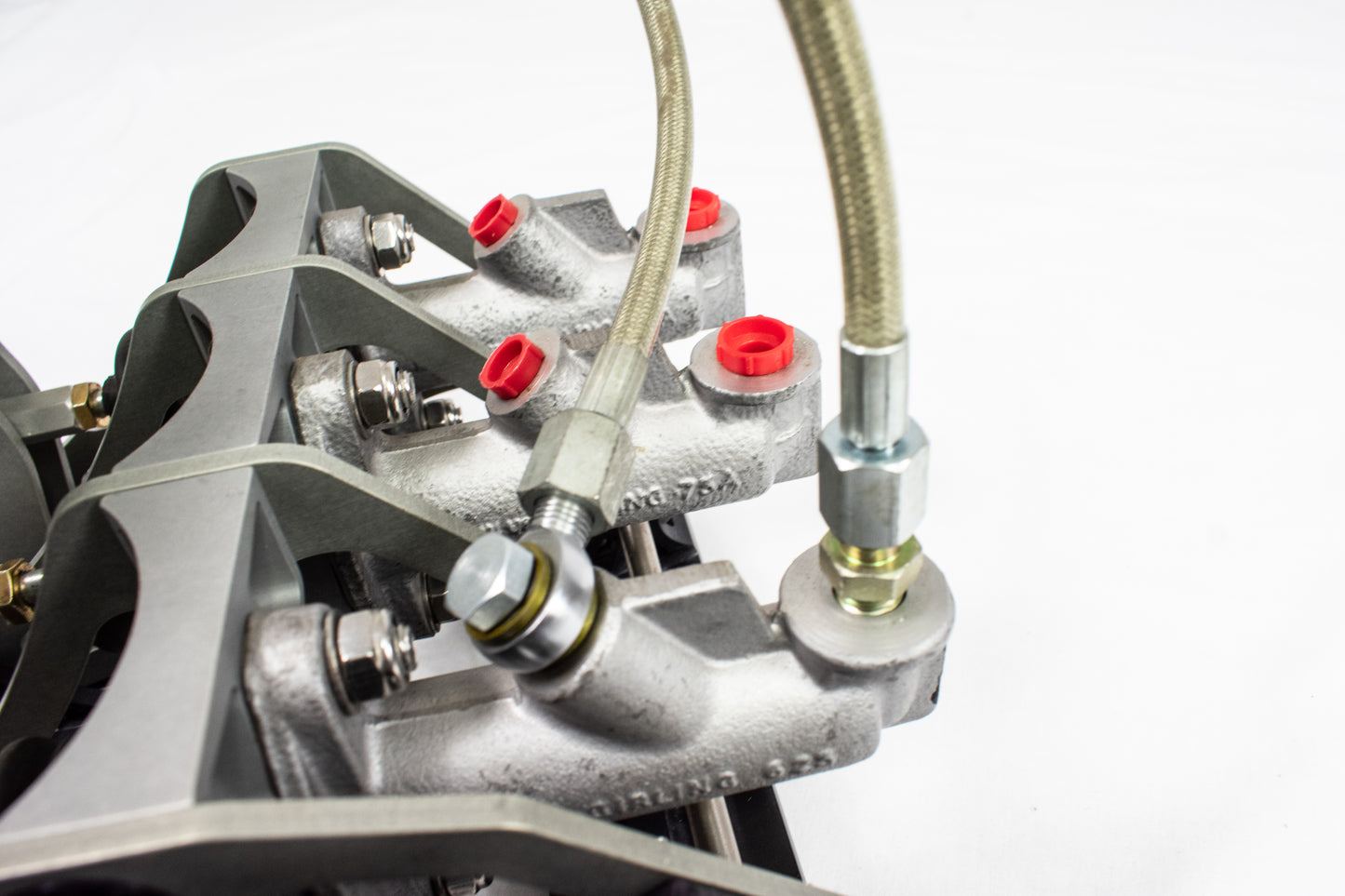

• Direct fit for PE Racing Pedal Box assemblies — pushrod features 5/16" UNF thread, compatible with PE Racing push-rod extenders supplied with all PE Pedal Frame assemblies
• PE Racing push-rod extenders provide increased pushrod length — the additional length reduces axial deviation between the pedal lever and master cylinder, improving linearity of force transfer and reducing side loading on the cylinder bore for more consistent, reliable braking feel

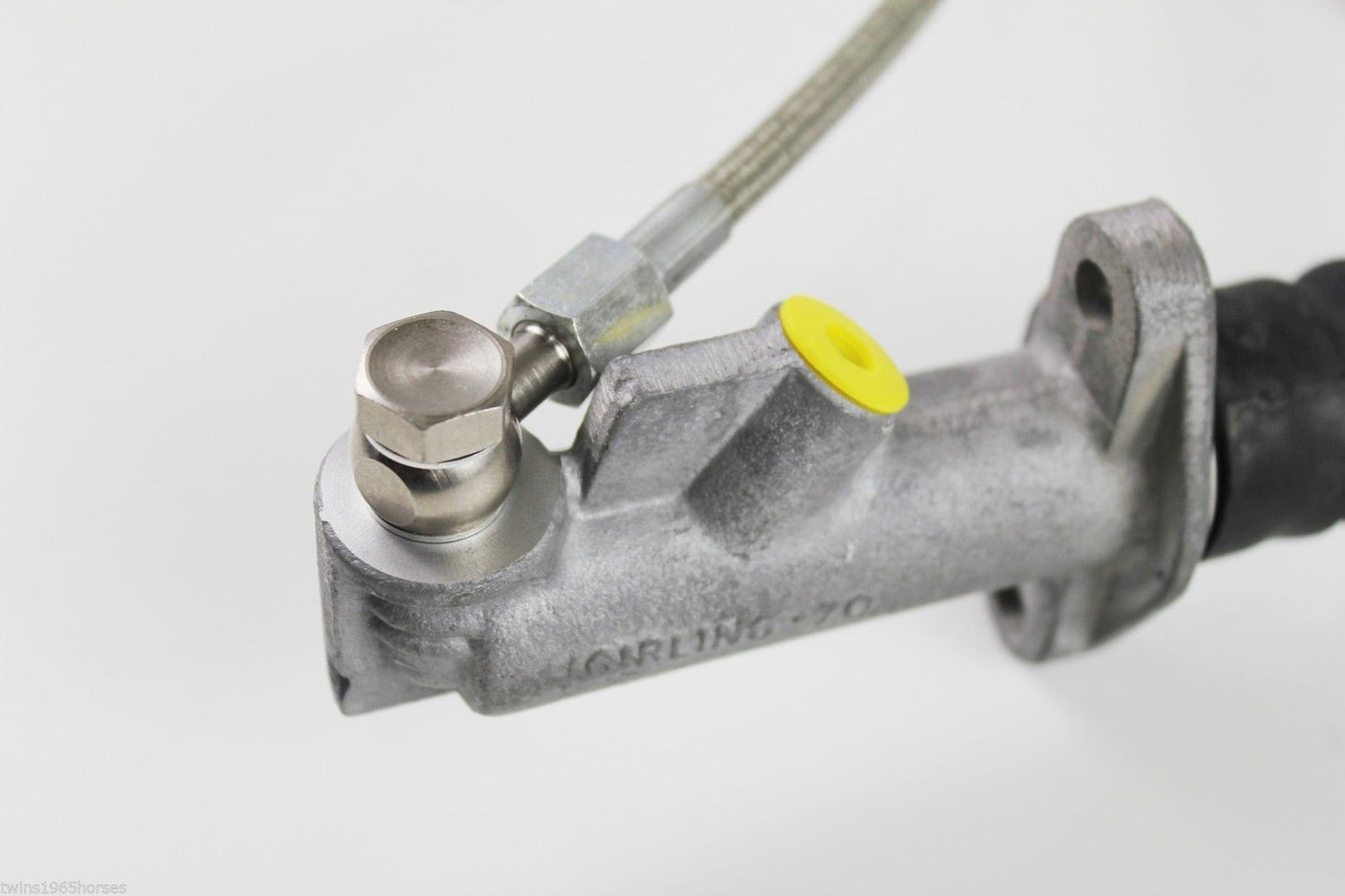

• Inlet port AN4, outlet port AN3 — 1.375" stroke

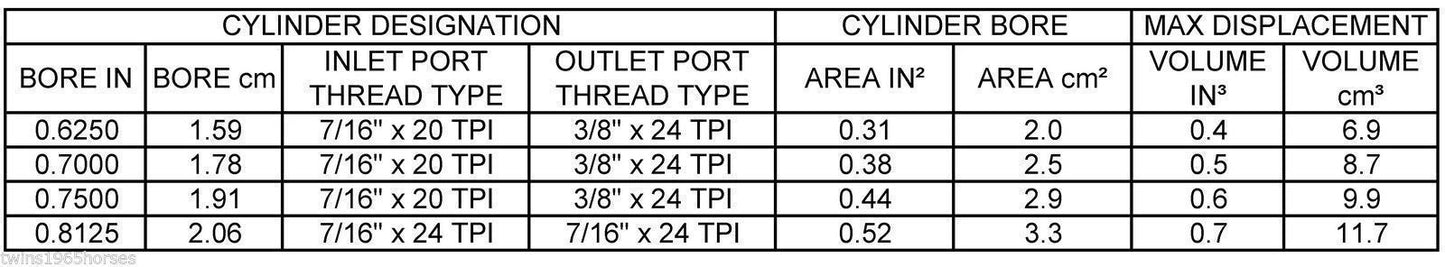

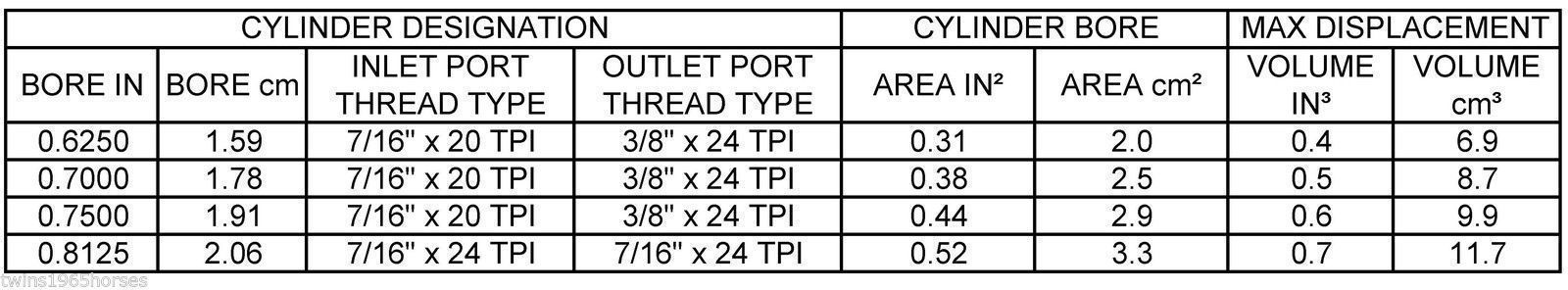

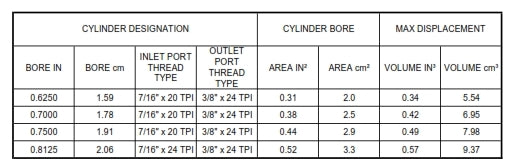

• Available in 4 bore sizes to suit your brake system requirements: 0.625", 0.700", 0.750", 0.8125"

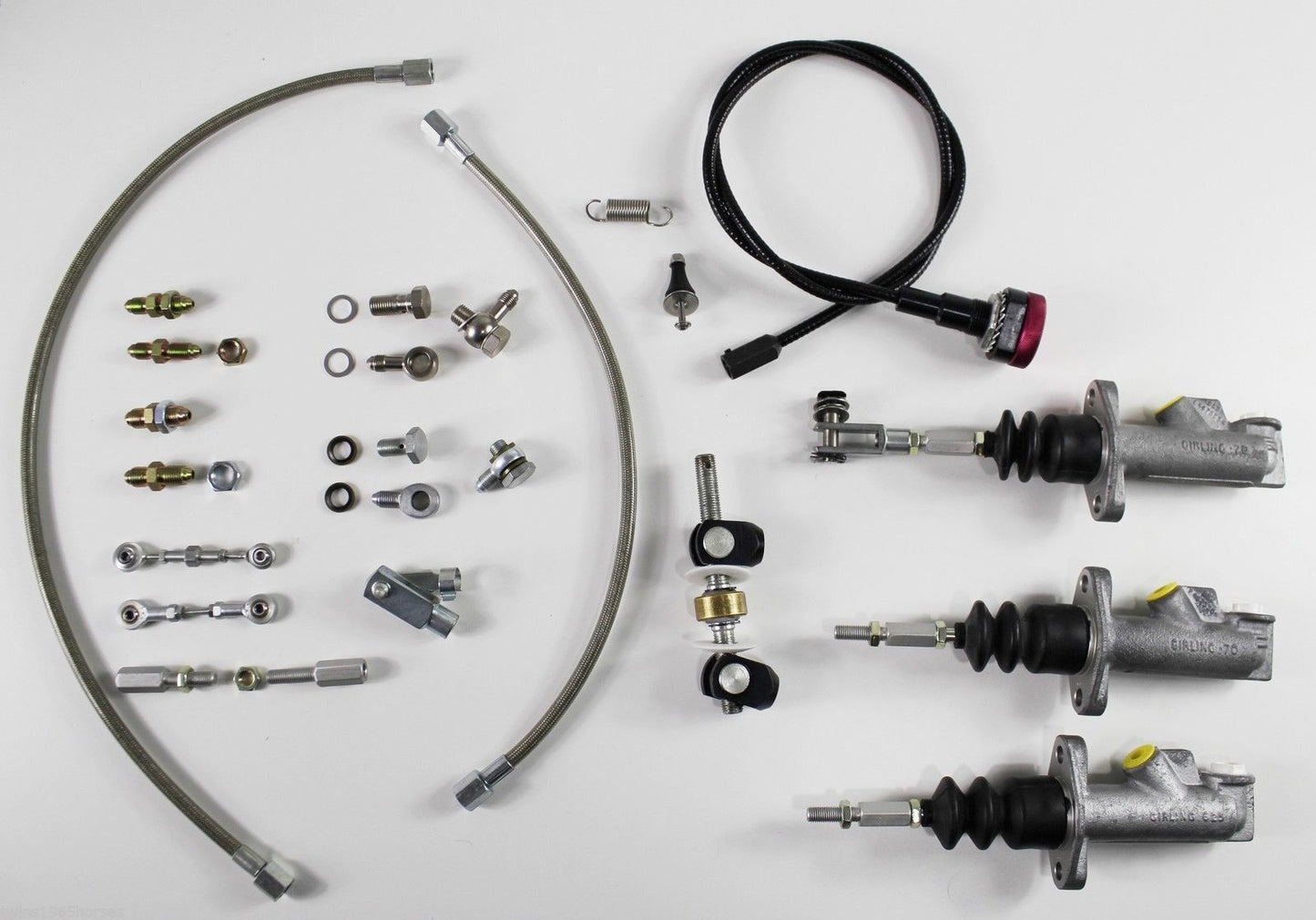

• PE Racing supplies compatible inlet and outlet hardware and accessories — braided hose kits, fittings and reservoir connections are available in our other listings to allow customers to complete a full, ready-to-plumb brake & clutch systems
• 2 required for 2 Pedal Auto assembly | 3 required for 3 Pedal Manual assembly

Full dimensional and technical specifications are available in the product images and downloadable datasheet on the PE Racing website at peracing.com.au.

Proven in physical competition since 2013 across Time Attack, Sports Sedans, Drag Racing, Drifting, Road Racing, Tarmac Rally, Gravel Rally, Off Road and more — in multiple categories and countries worldwide. Intended for race vehicles where regulations permit.

Prices are excluding GST.
