Pedal Slider Kit PE-006-1003

PE Racing — Australian motorsport component manufacturer, specialising in competition-grade pedal assemblies and pedal system components for physical race vehicle use. Backed by patented engineering, comprehensive technical documentation, and a decade-long track record in serious competition.

⚠️ Pedal Assembly is NOT included — available separately in 2 or 3 Pedal versions.

• Industry-leading low-profile compact design — significantly more space-efficient than competing slider systems, without compromising strength or adjustability
• Dual stainless steel pins in double shear — a critical safety feature ensuring the locking mechanism is supported on both sides, dramatically reducing the risk of pin failure under race loads
• Auto-advance gas strut with cable-operated release to dual S/S pins — enables fast, confident driver changeovers with one-handed remote T-handle release (1,500mm cable)
• Twin linear rails with multiple adjustment increments — supports precise, repeatable longitudinal pedal positioning while maintaining pedal geometry
• 6061-T6 billet aluminium frame with hard anodised finish — upper panels and fittings in black and clear anodised finish, stainless steel fixings throughout
• Retains master cylinder inclination angles to allow self-bleeding via elevated inlet port of Girling cylinders during heavy use
• Designed for endurance racing and multi-driver applications — suits PE Racing Billet Pedal Assemblies, caters to FIA fixed seat regulations
• Also suitable for sim racing setups to enhance driver experience and training realism

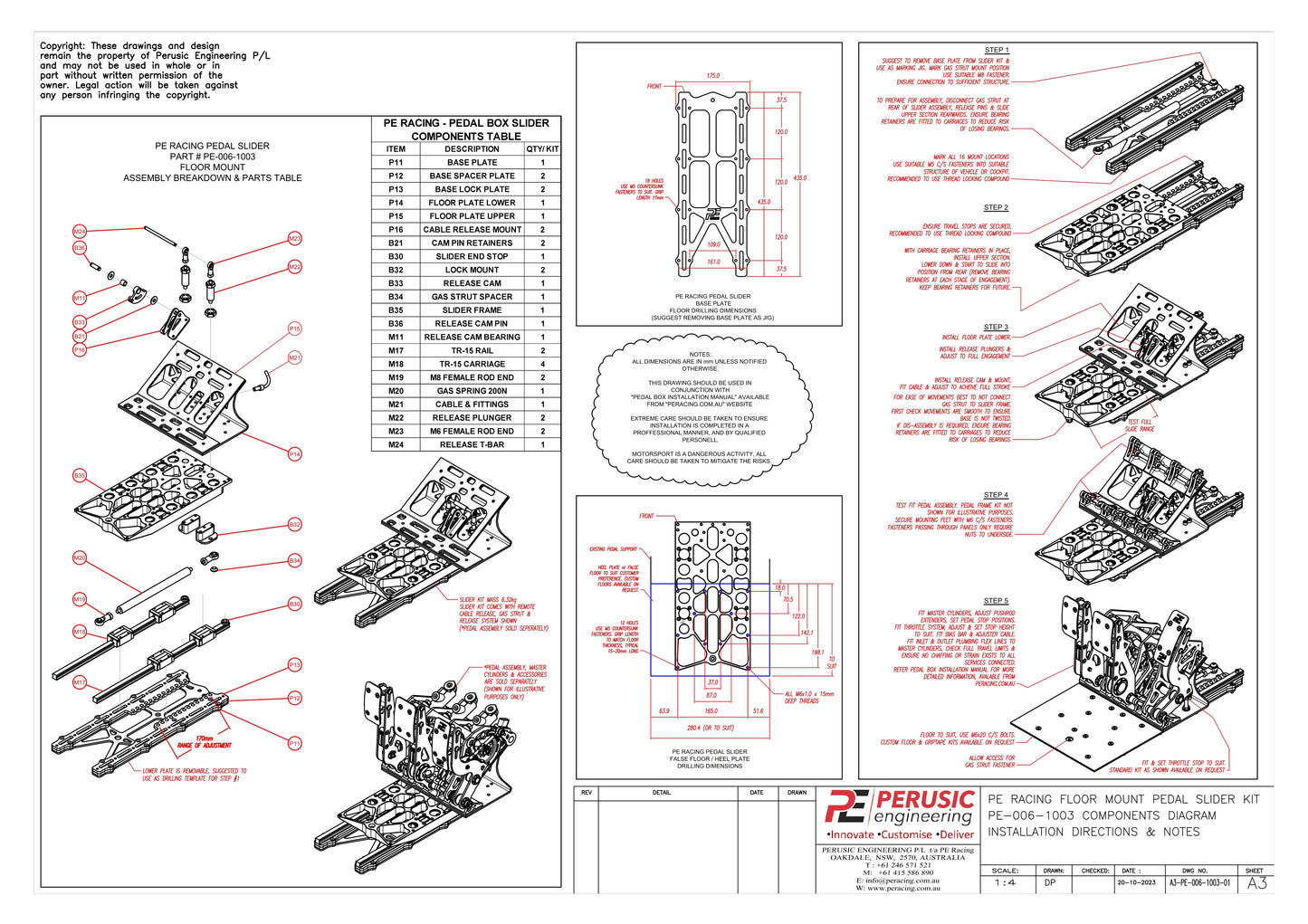

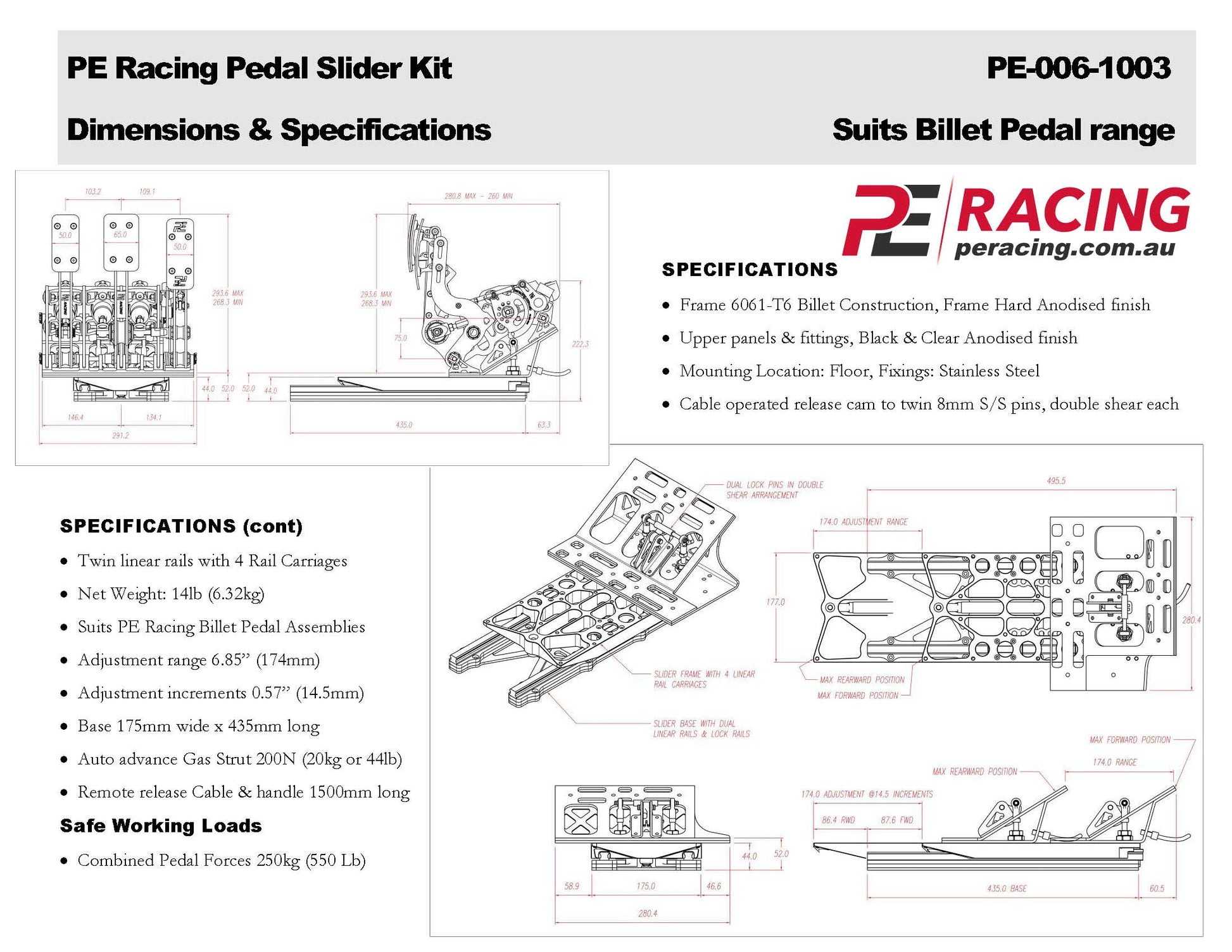

Full dimensional and technical specifications are available in the product images and downloadable datasheet on the PE Racing website at peracing.com.au.

Protected by Patents: US 11,390,162 B2 | AU 2015251489 | EP 3134288

Proven in physical competition since 2013 across Time Attack, Sports Sedans, Drag Racing, Drifting, Road Racing, Tarmac Rally, Gravel Rally, Off Road and more — in multiple categories and countries worldwide. Intended for race vehicles where regulations permit.

Prices are excluding GST.
