Tube to Panel Mounting Bracket Clamp PE-012 range

PE Racing — Australian motorsport component manufacturer. Winner of the PRI Global Media Award for Best Chassis Product — engineered for motorsport, adaptable for any application requiring a strong, non-permanent tube mount.

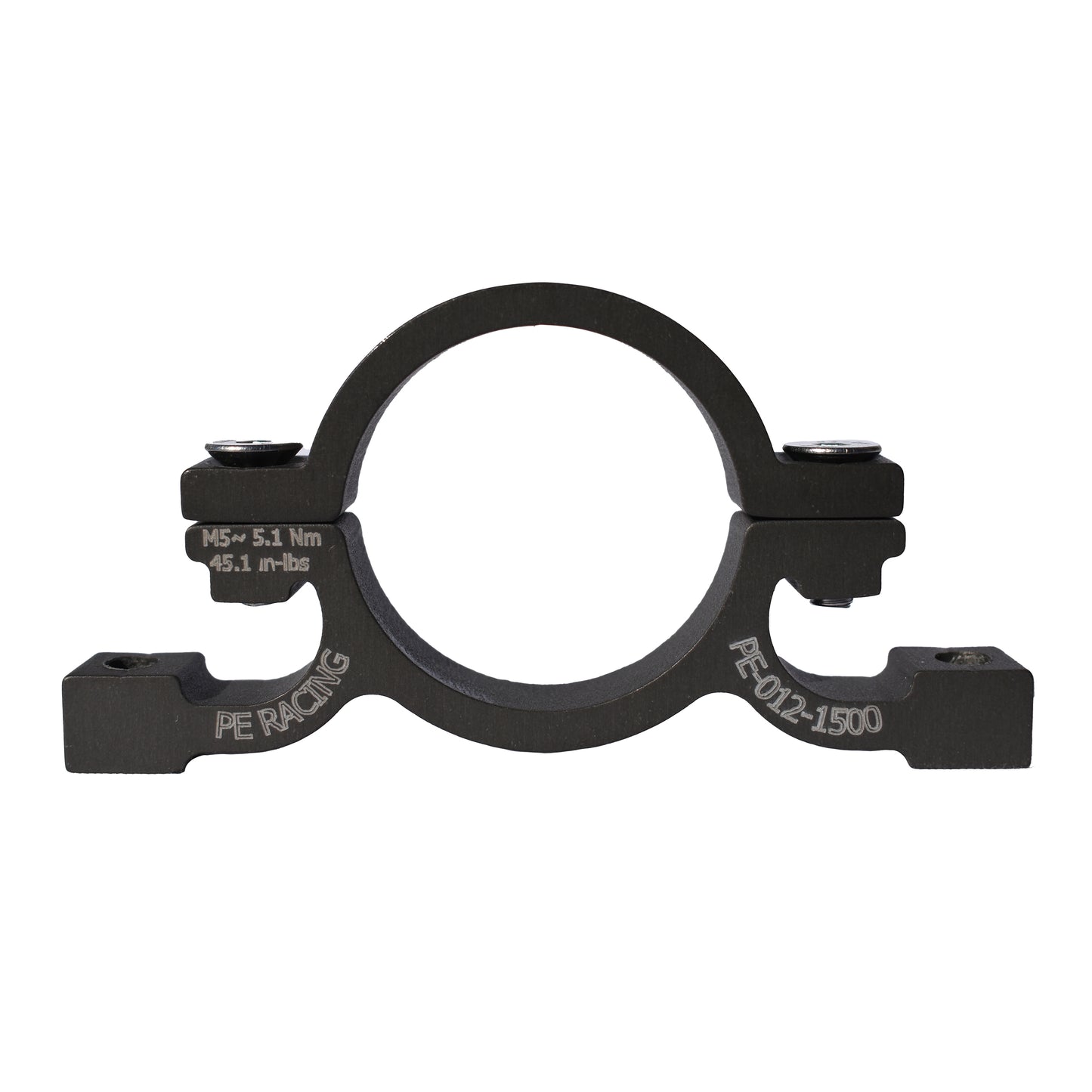

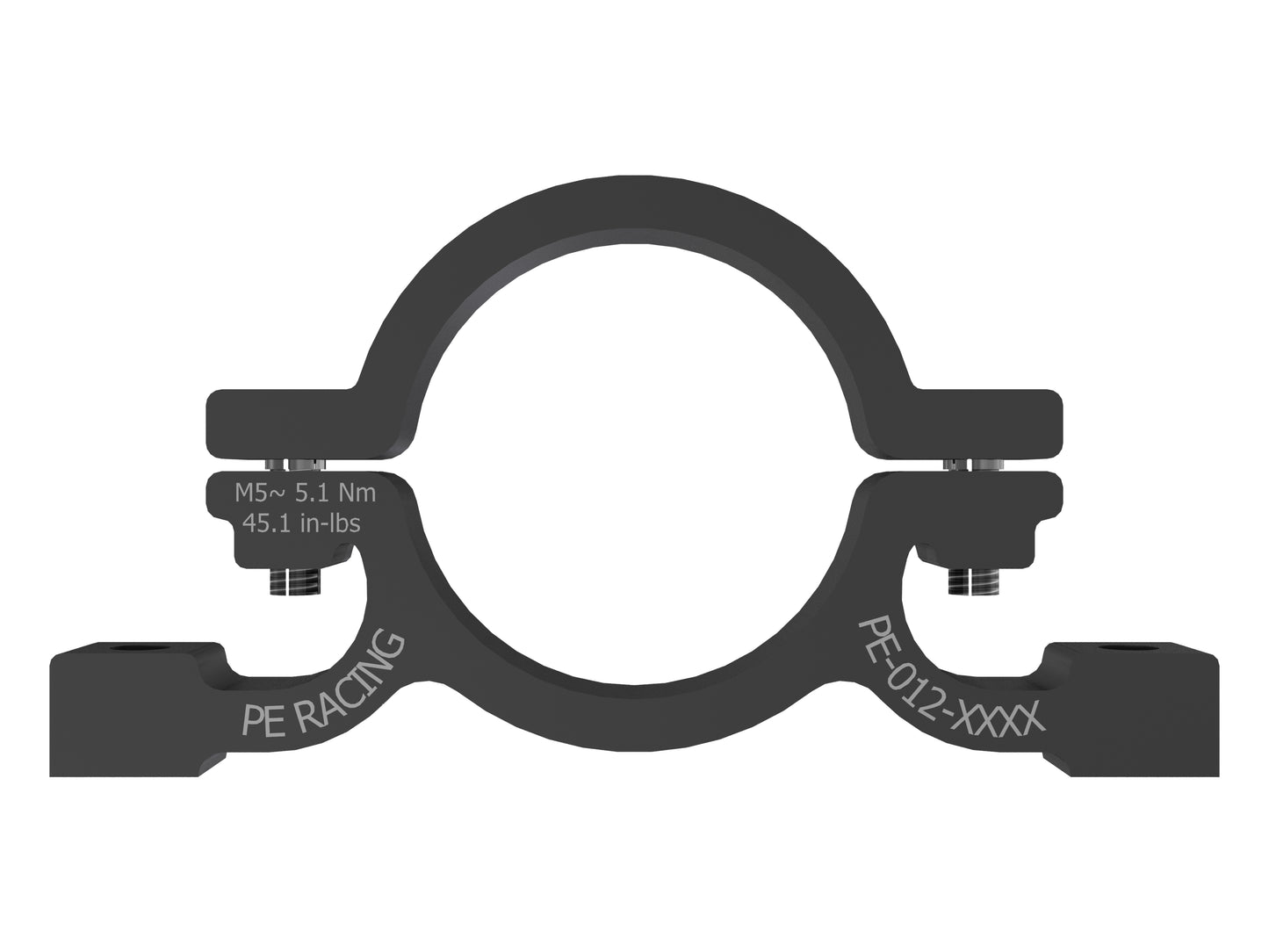

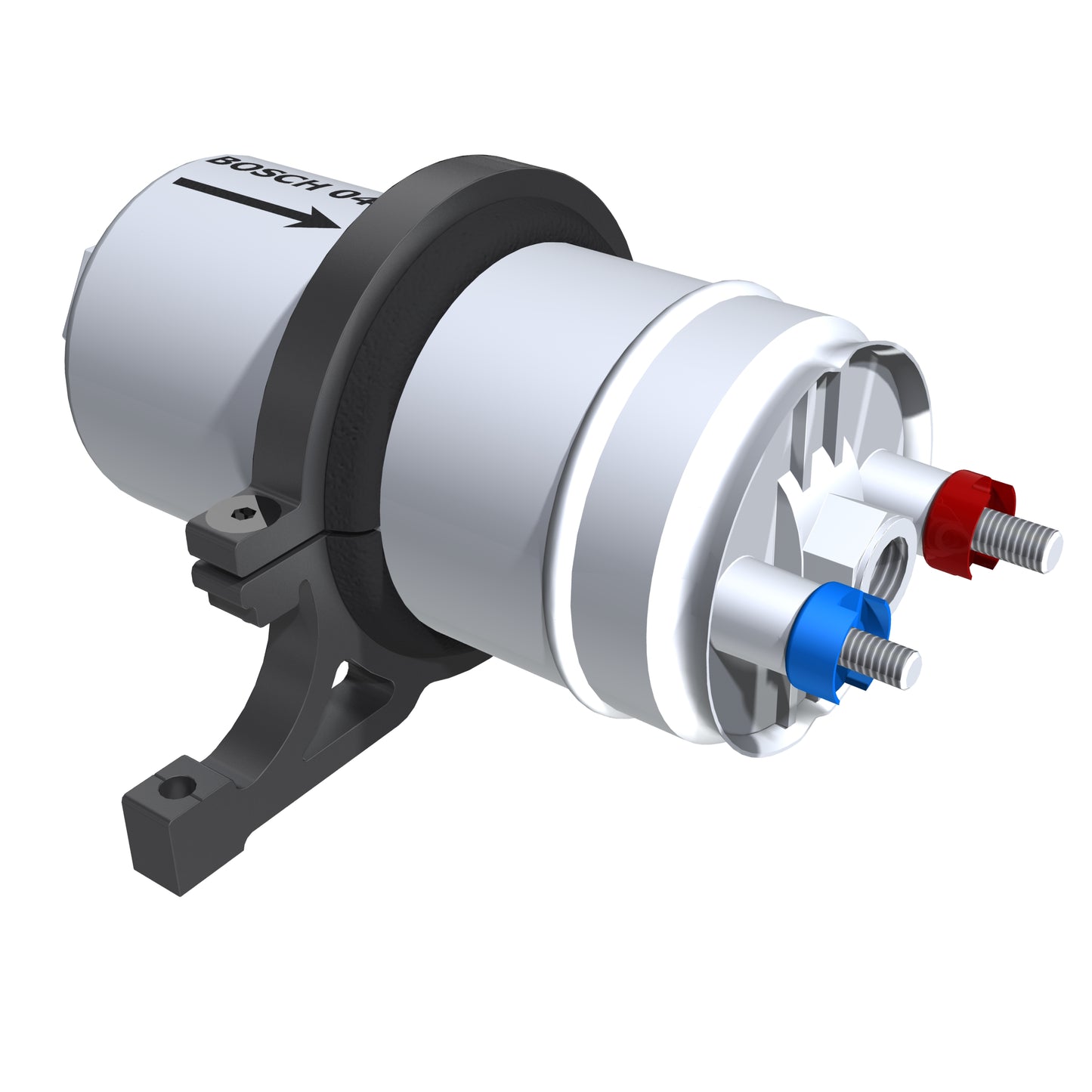

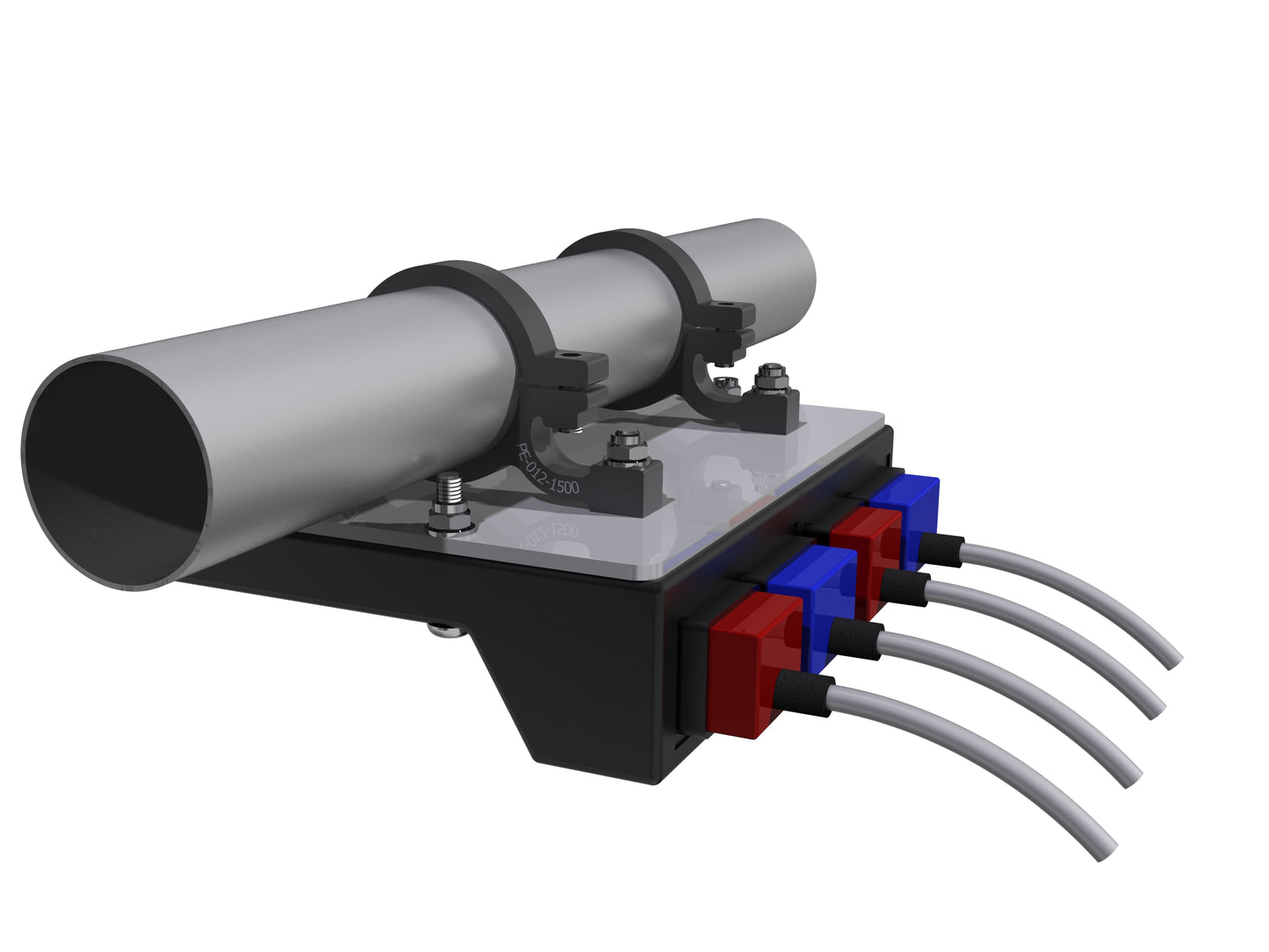

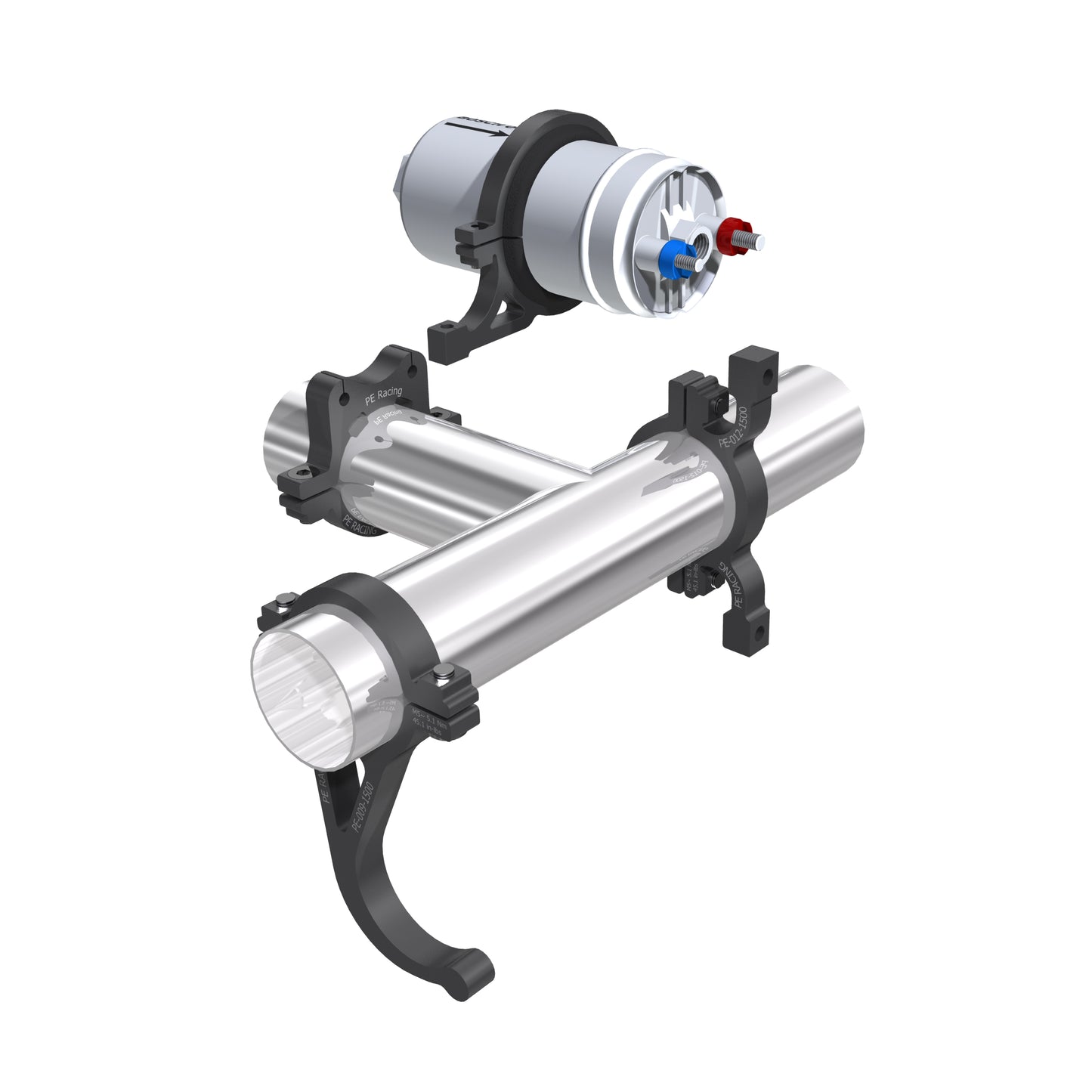

• Tube to panel bracket — clamps to roll cage or chassis tubing and provides a flat panel mounting face, ideal for attaching panels, brackets, electronics or accessories directly to tube structures. Designed for motorsport but equally at home in marine, industrial or any application involving tubular frames

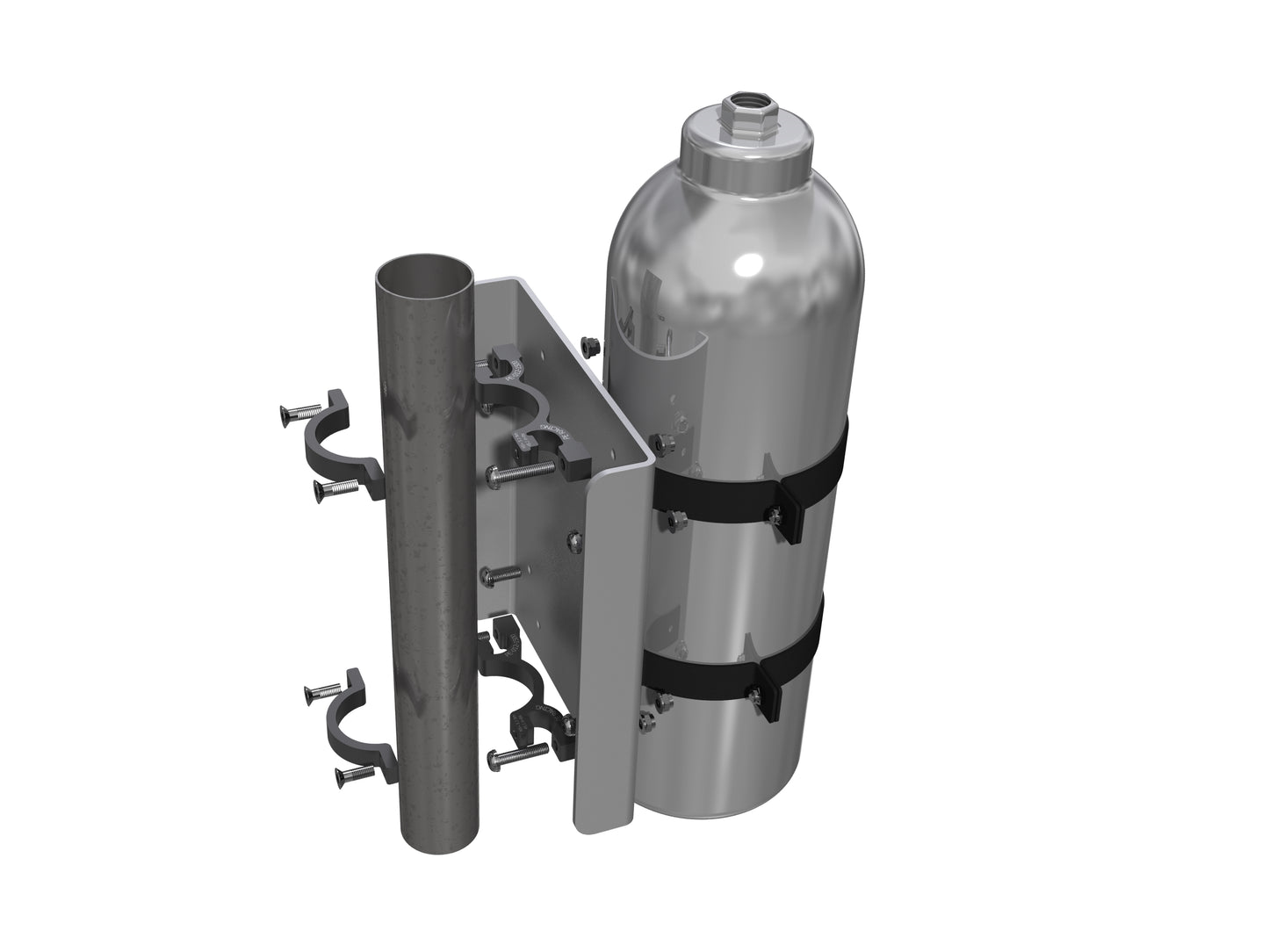

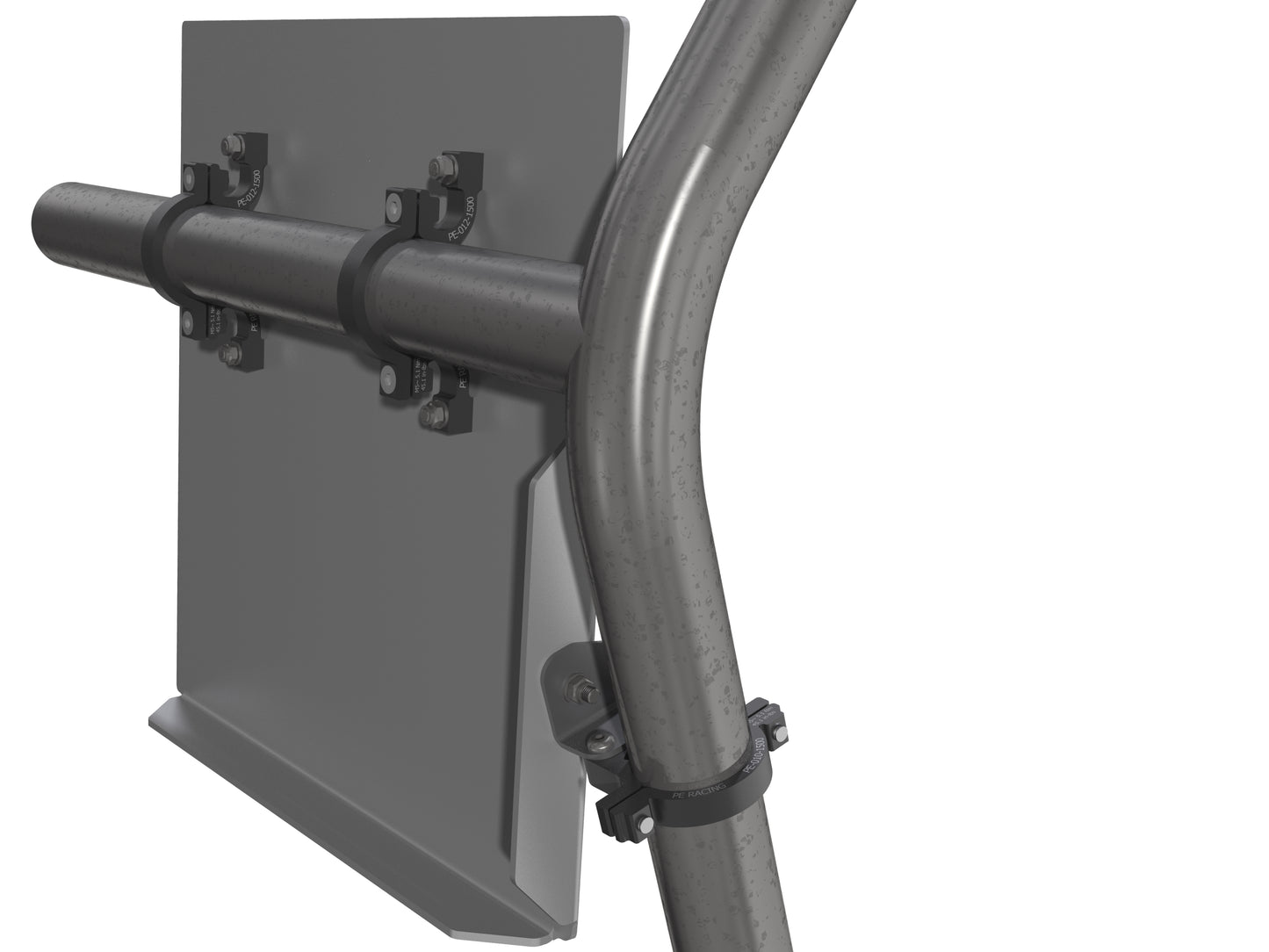

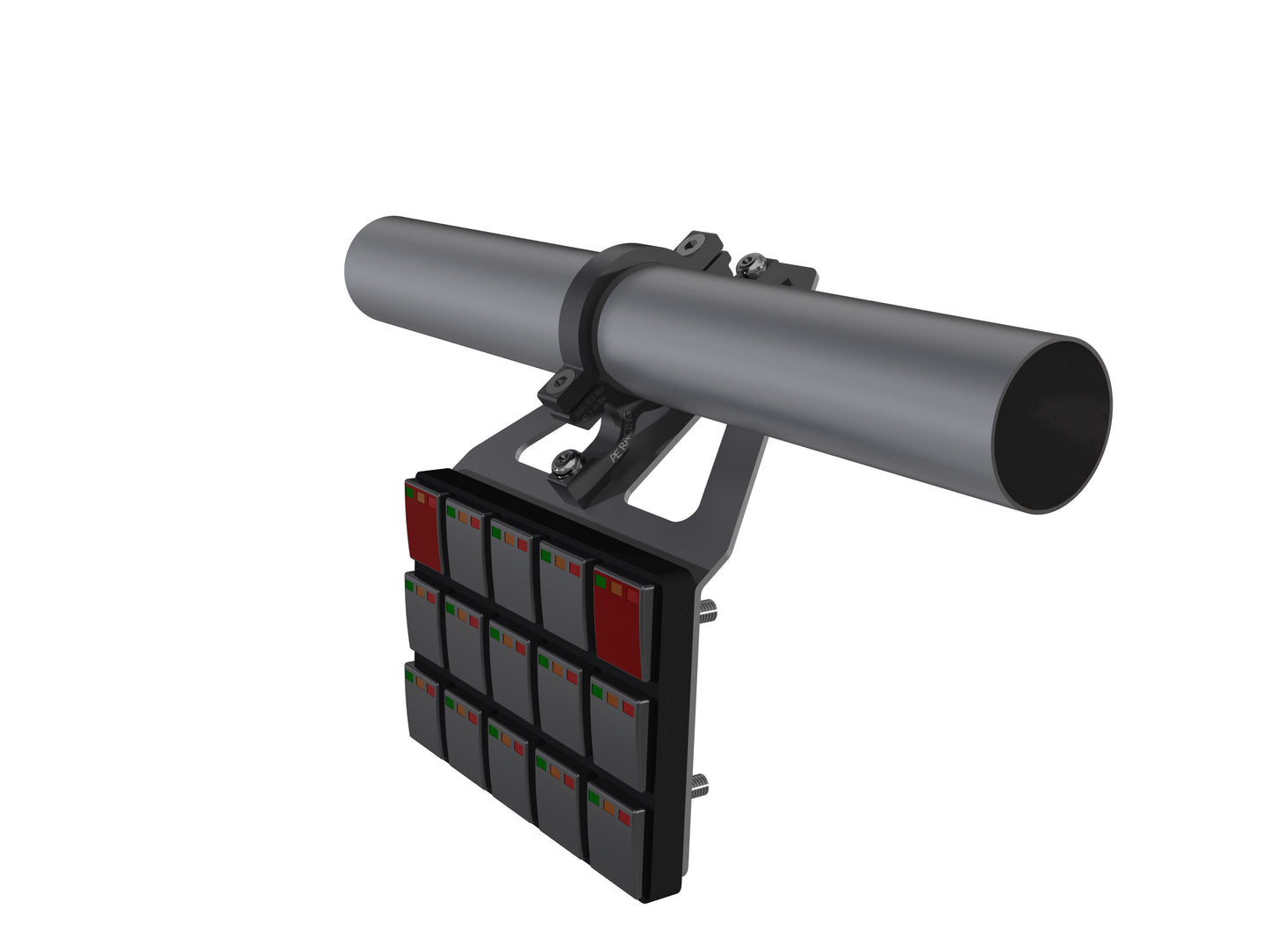

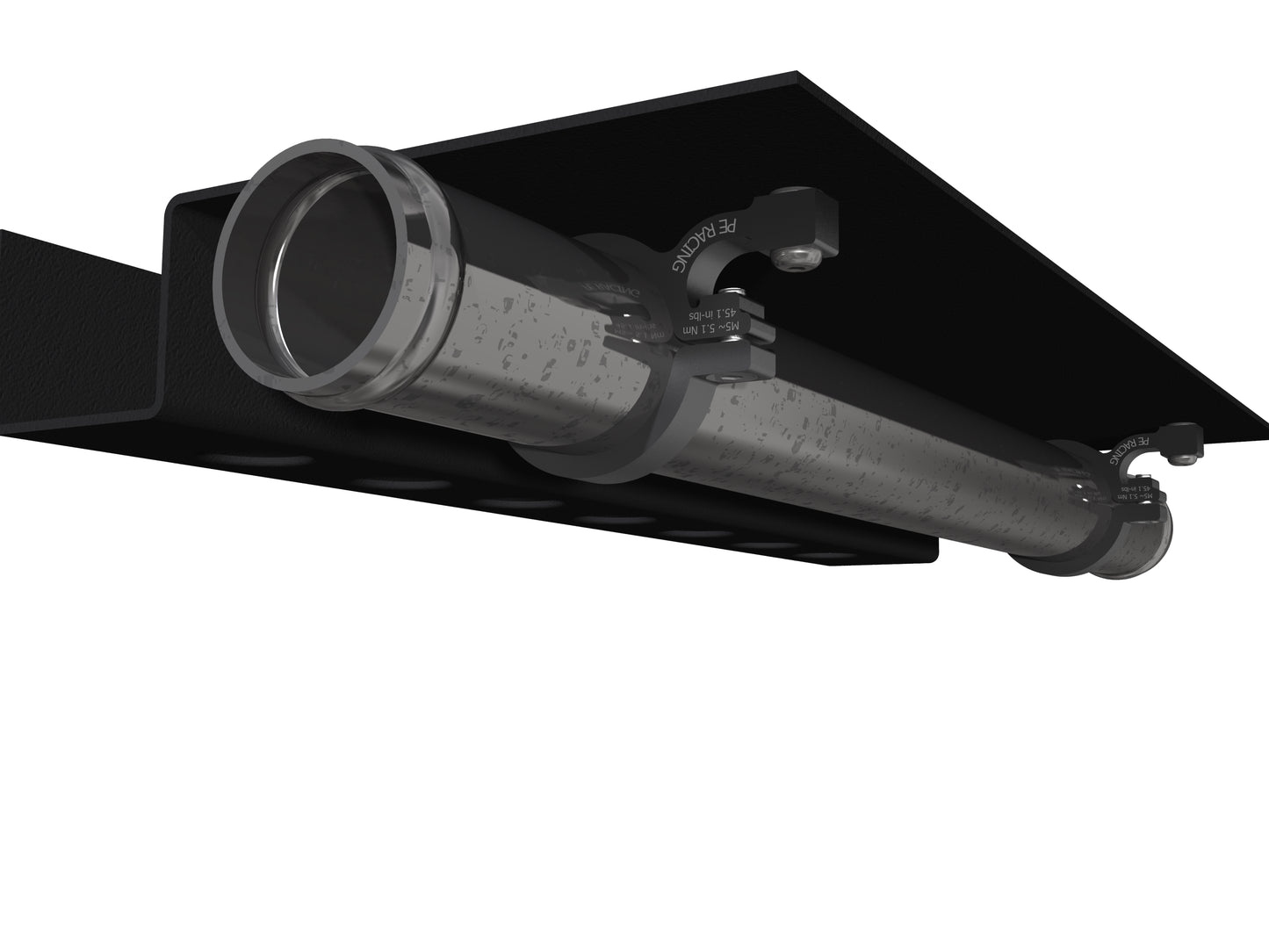

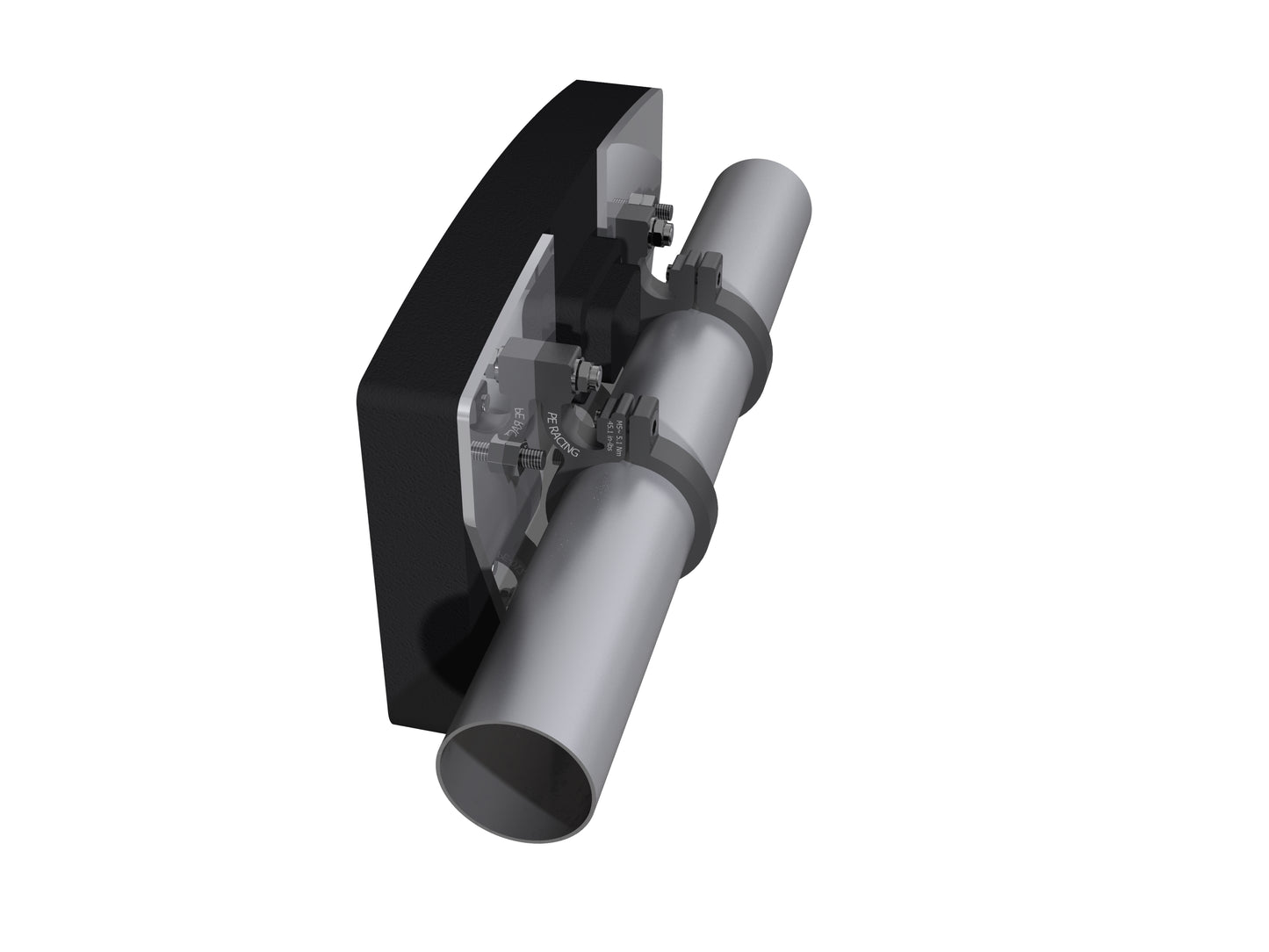

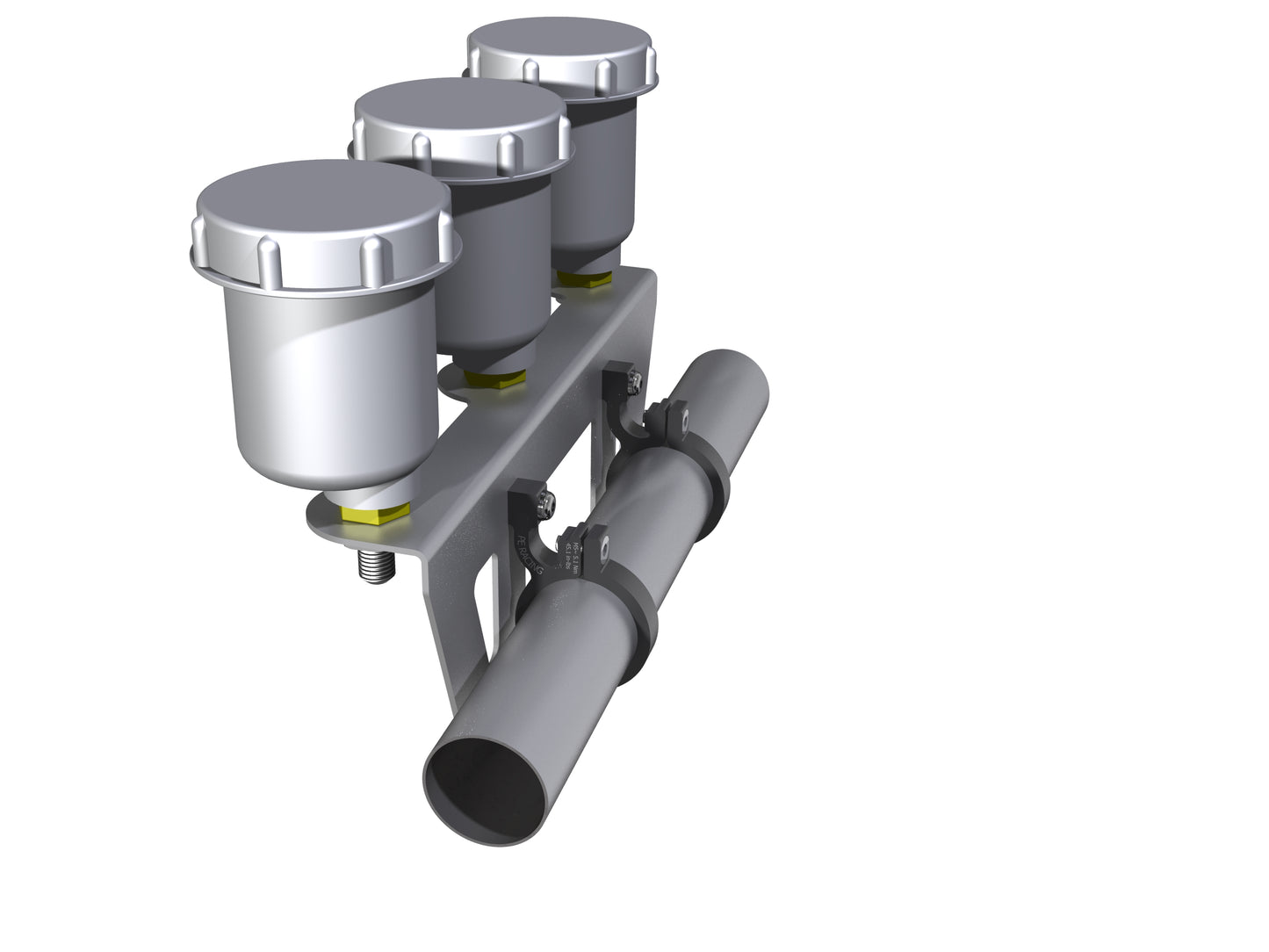

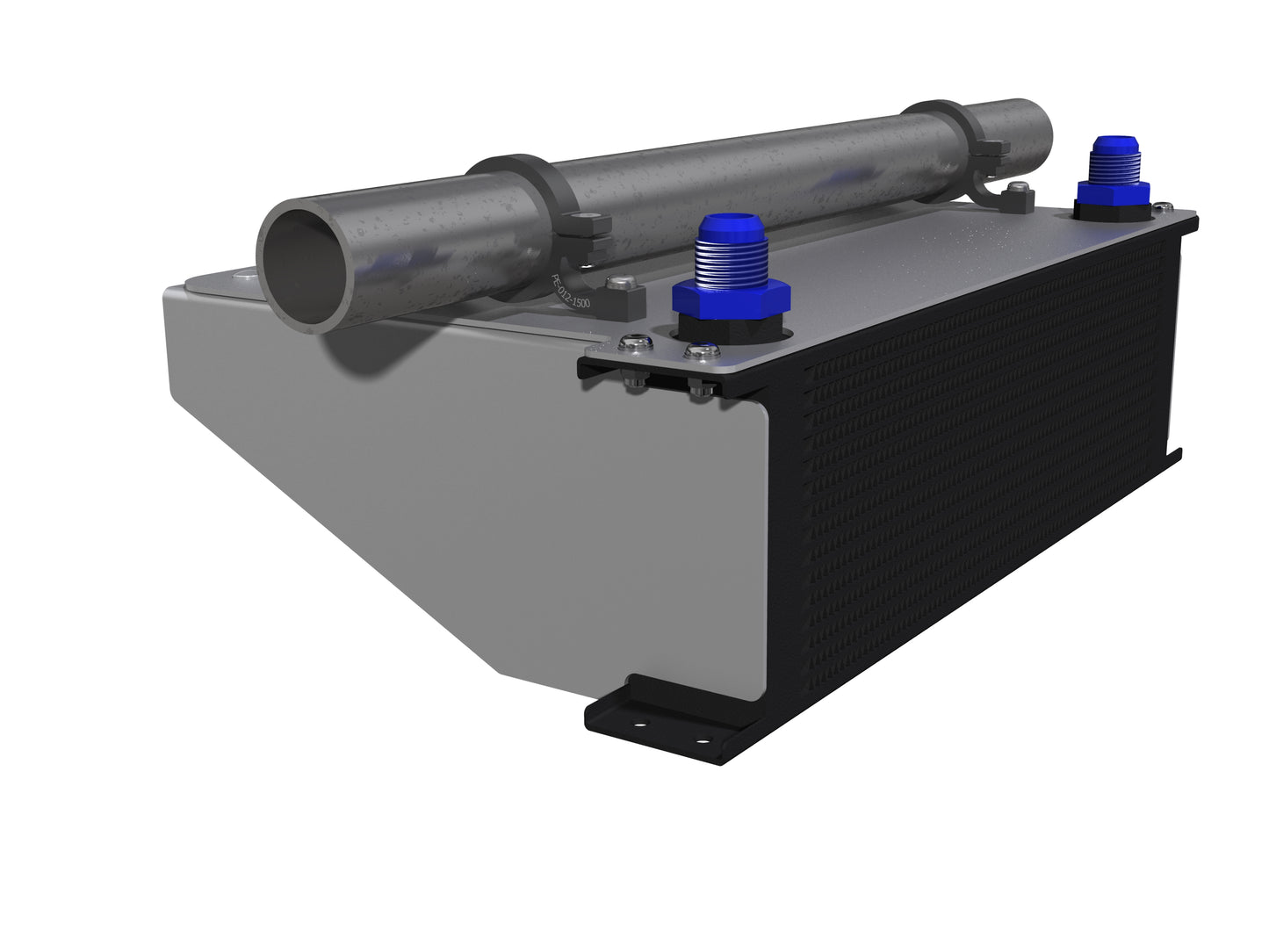

• Add your own products directly to the clamp — the panel face allows customers to bolt on custom brackets or accessories, making it a versatile base for creative builds without any fabrication
• Lightweight aircraft alloy construction — hard anodised finish for corrosion resistance in harsh environments. Specific weights and dimensions for each size are shown in the size chart included in the product images
• Non-permanent, repositionable — simply unscrew to adjust or relocate, no welding required, preserving the structural integrity of the tube. Eliminates the deformation, stress and weakening caused by welding across tube members
• Engineered to 10G dynamic load (5kg) and 50kg static load per clamp
• Optional vibration insulator available — note: adding the insulator suits the next size down

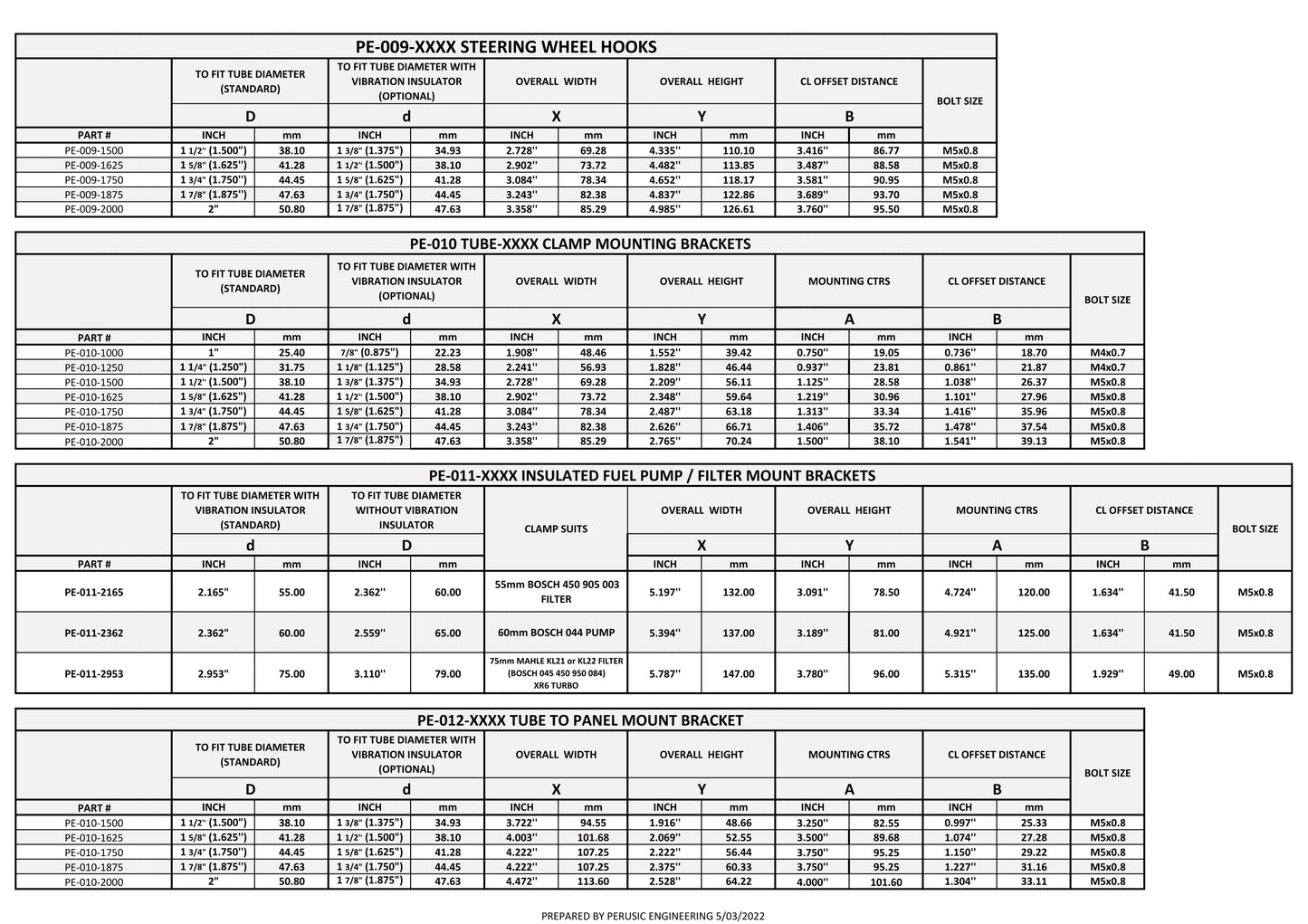

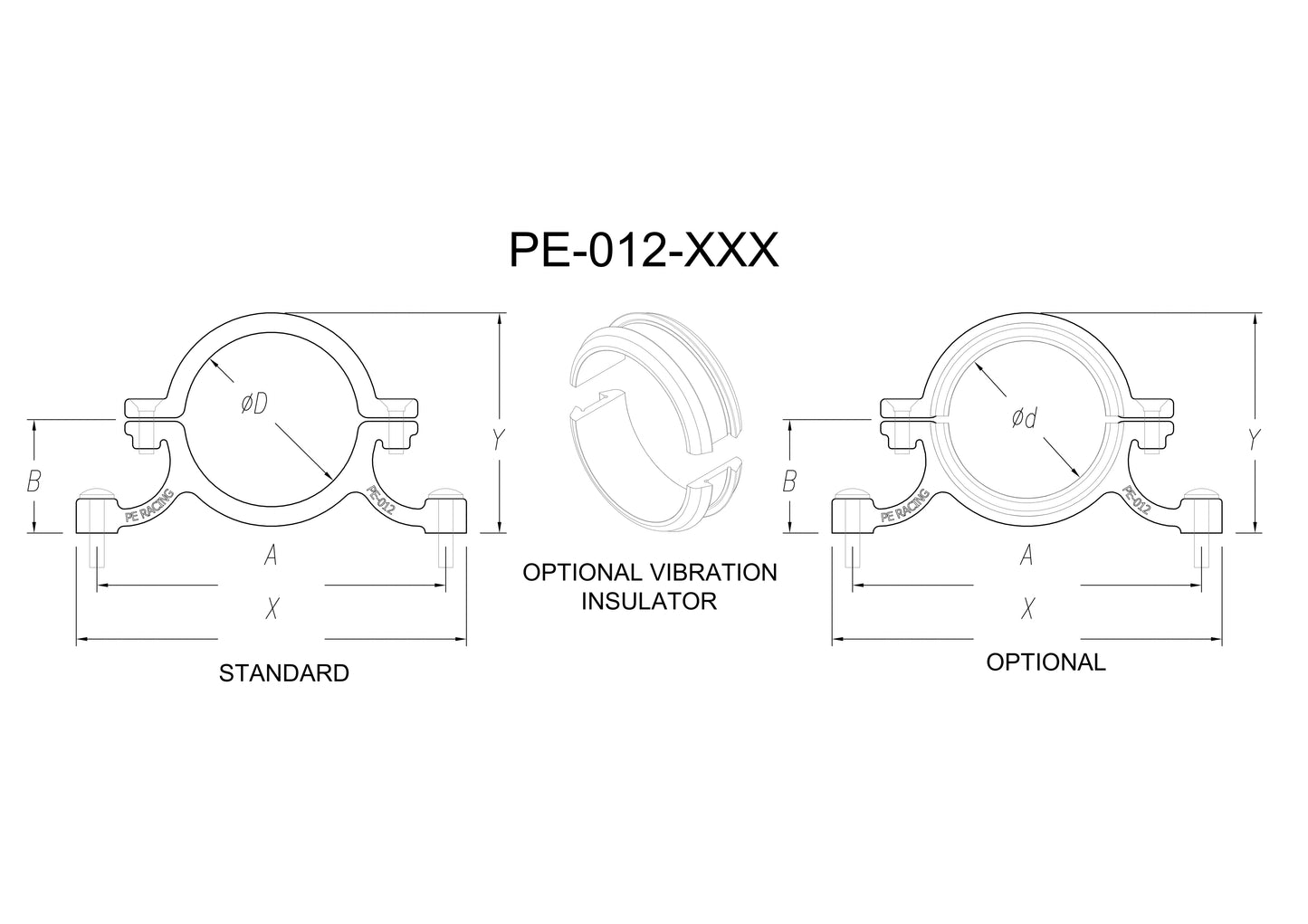

• Available in 5 tube diameters: 1.5", 1.625", 1.75", 1.875", 2" — see size chart for full dimensional data and weights

Prices are excluding GST.
