PE Racing — Australian motorsport component manufacturer, specialising in competition-grade pedal assemblies and braking systems for physical race vehicle use. Backed by patented engineering, comprehensive technical documentation, and a decade-long track record in serious competition. Worldwide shipping.
-
Patented billet design weighing just 2.79kg — exceptional driver feedback with lower weight and centre of gravity for improved performance and handling
-

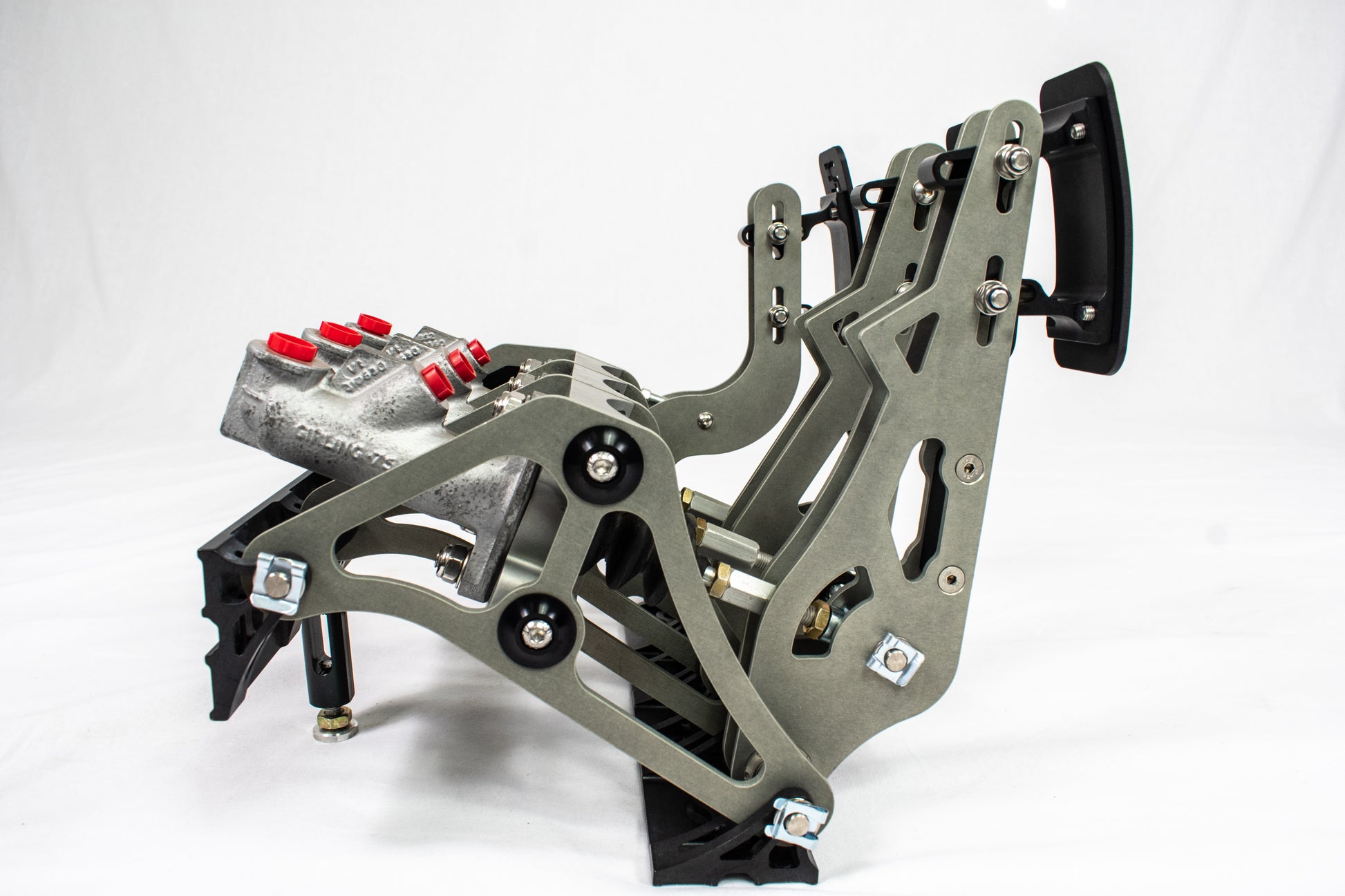

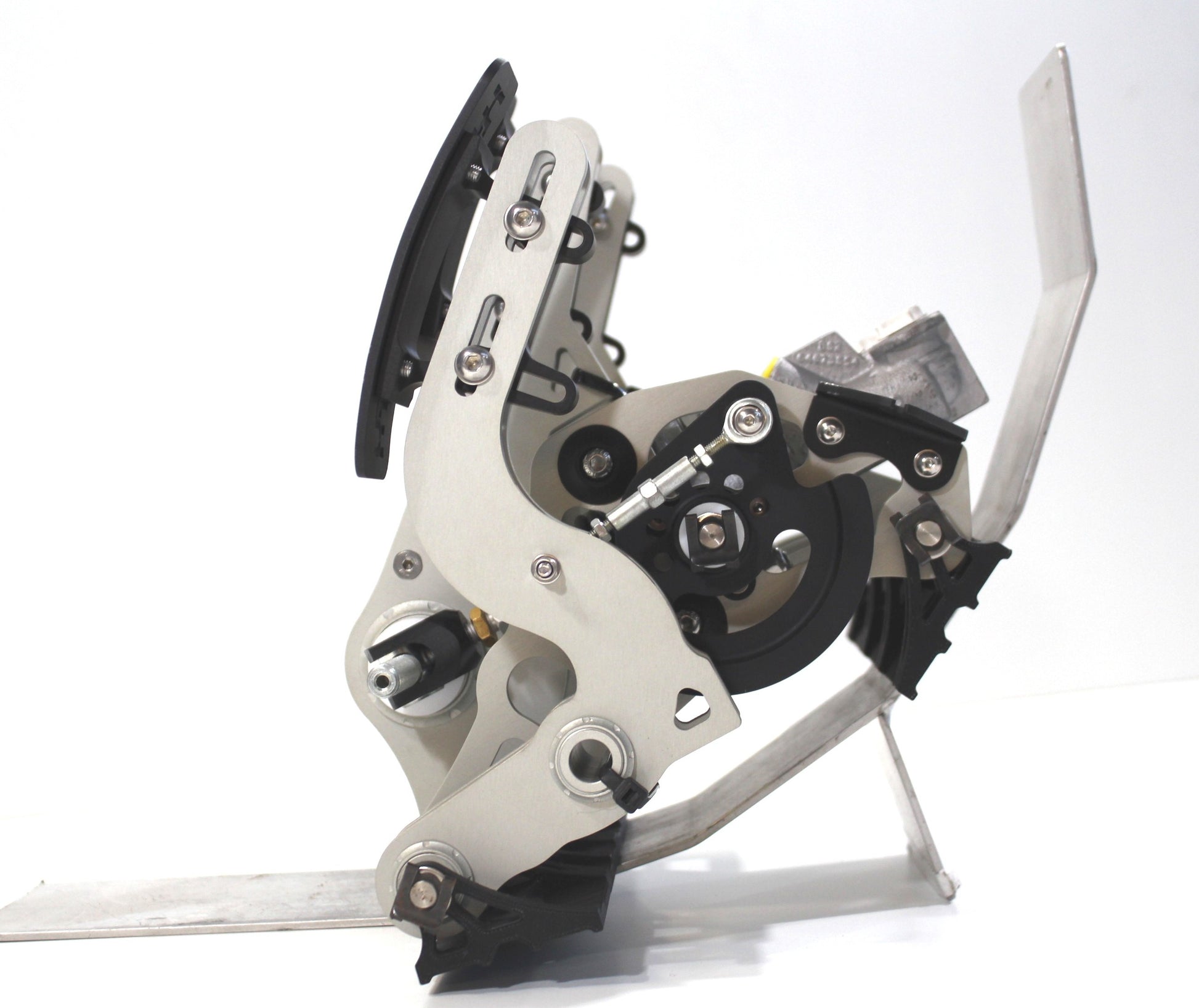

Patented dual pivoted mounting feet — a feature unique to PE Racing — by spreading connection loads across two pivot points, the assembly mounts securely without requiring additional reinforcement plates, bracing or ballast. Unlike competing floor mount systems, this eliminates the need for extra installation hardware and associated weight, keeping your total installed weight to an absolute minimum. The feet pivot to accommodate a wide range of floor and bulkhead angles without modification.
-
All adjustments made without disassembly — maintain ideal push-rod geometry at all times for consistent, repeatable pedal feel
- Built-in brake balance bar with adjustable pedal ratio, adjustable pedal pads and adjustable throttle linkage geometry
- High-strength aircraft alloy billet construction with anodised finish — engineered to withstand superior race loads
-

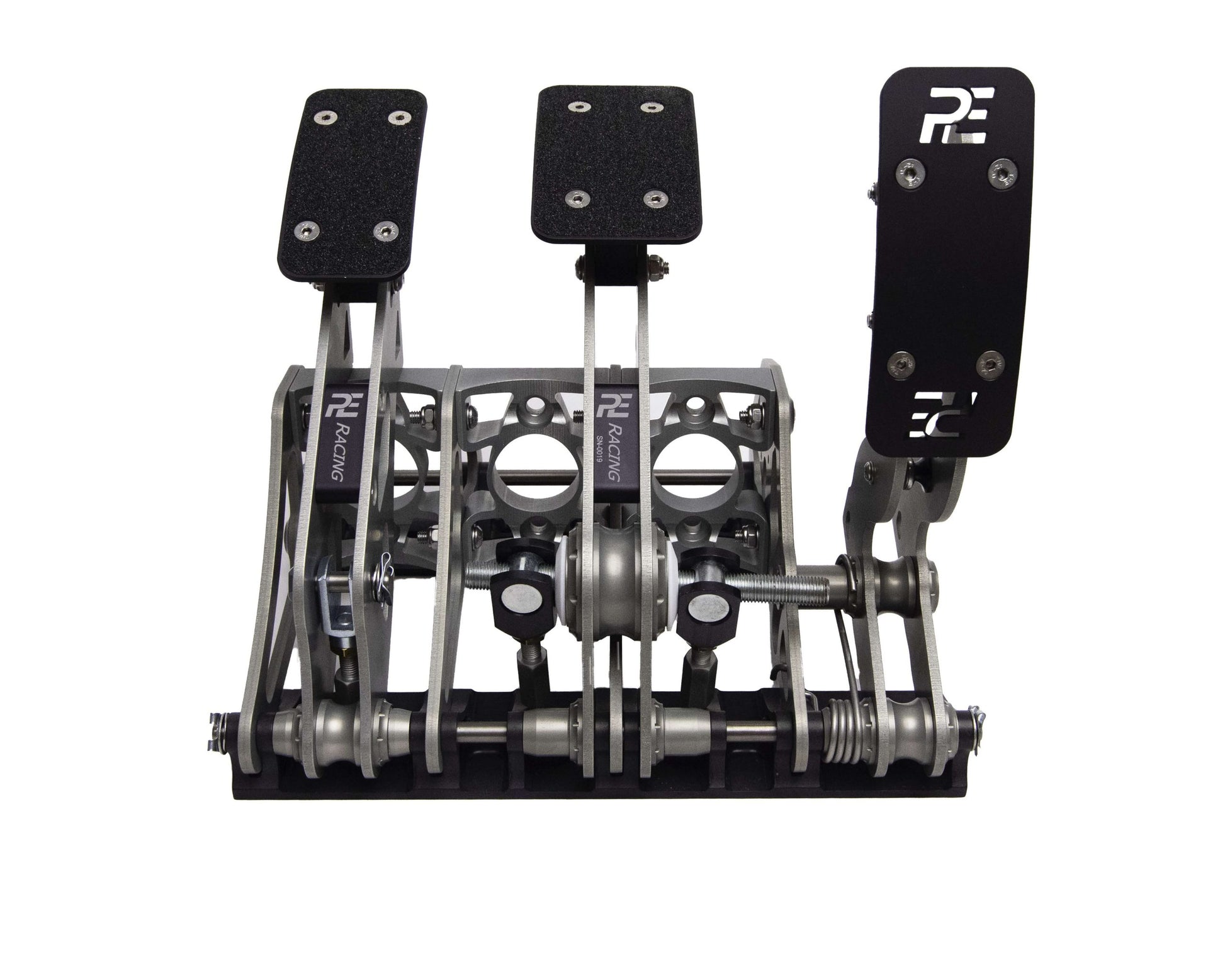

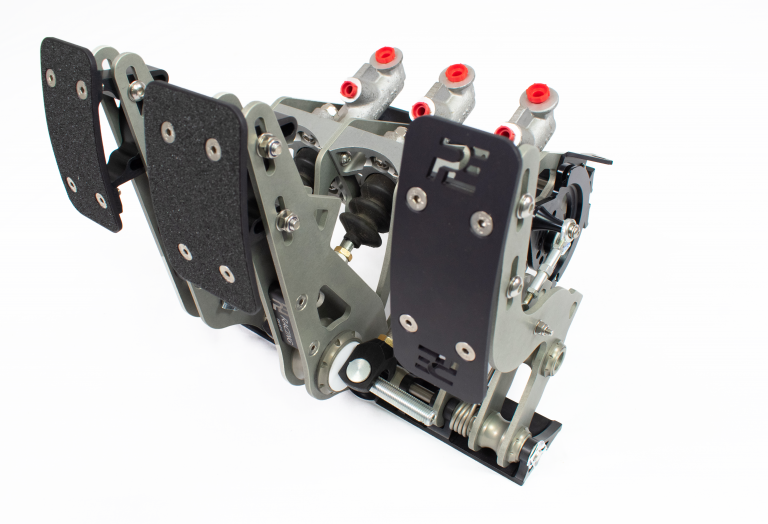

3 Pedal Manual configuration — suits manual transmission race vehicles; ideal for heel-toe braking technique and clutch-in downshift applications across circuit racing, time attack, tarmac rally, and gravel rally

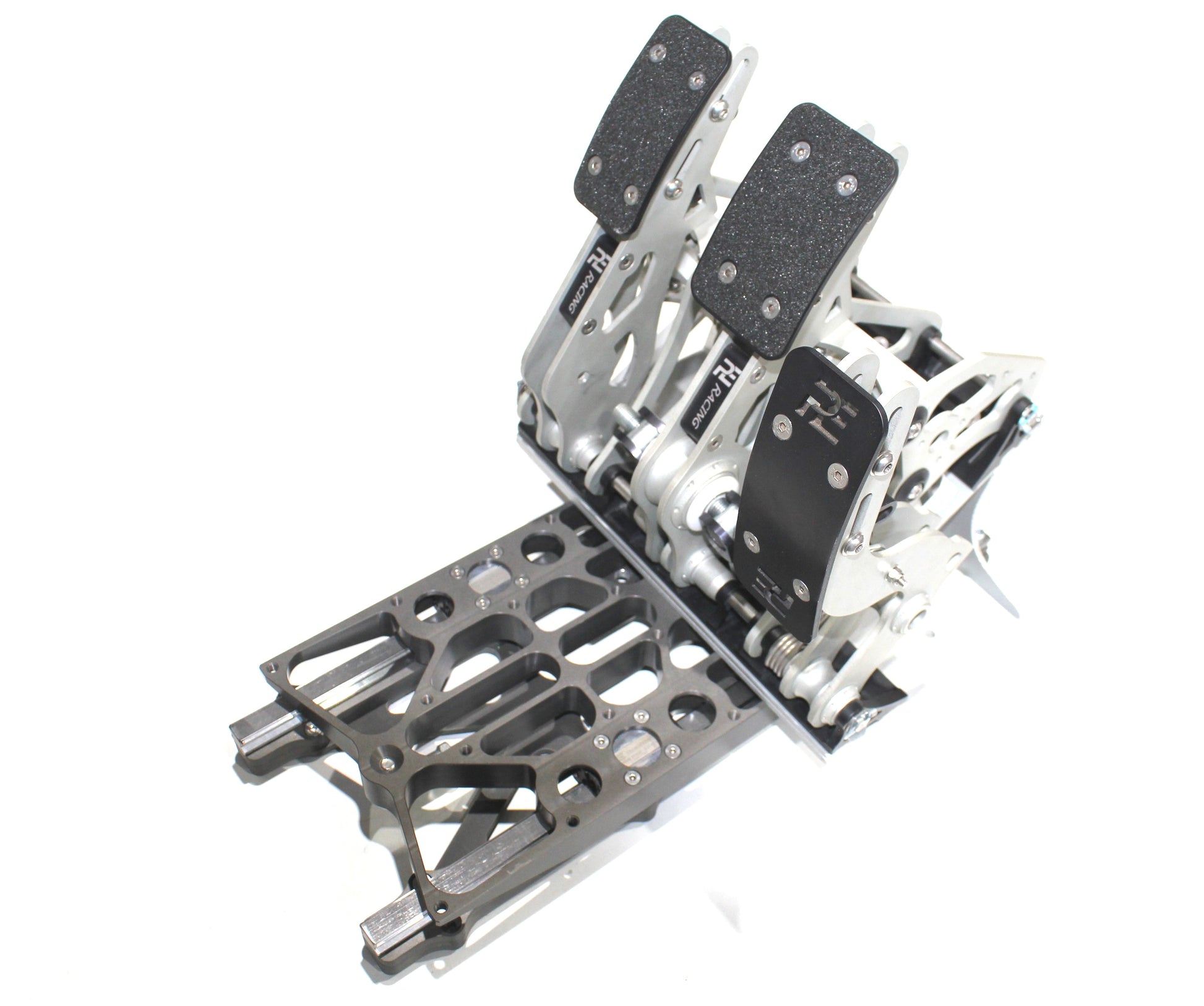

- Floor mount design — compatible with the PE Racing Billet Pedal Slider Kit for multi-driver or endurance applications

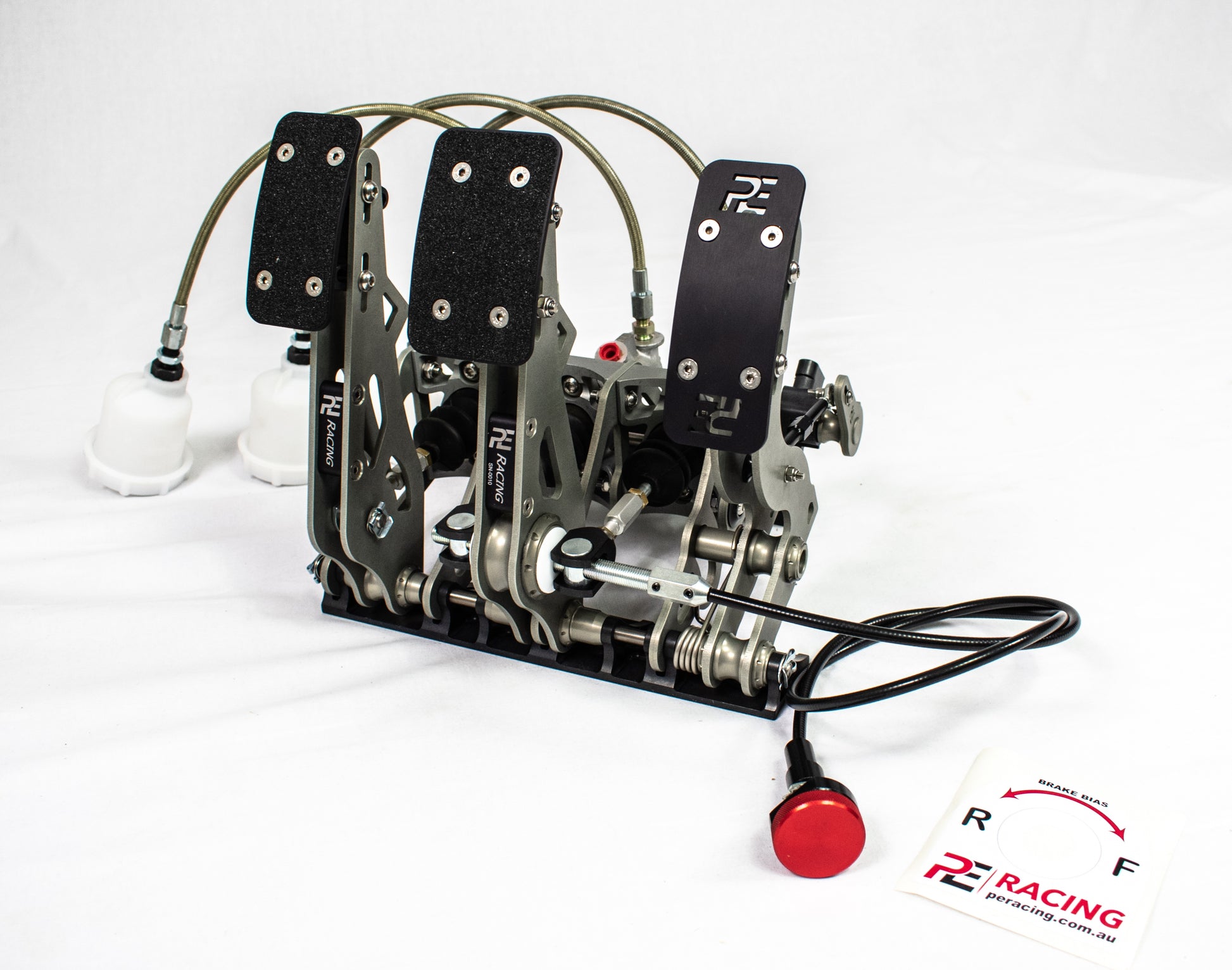

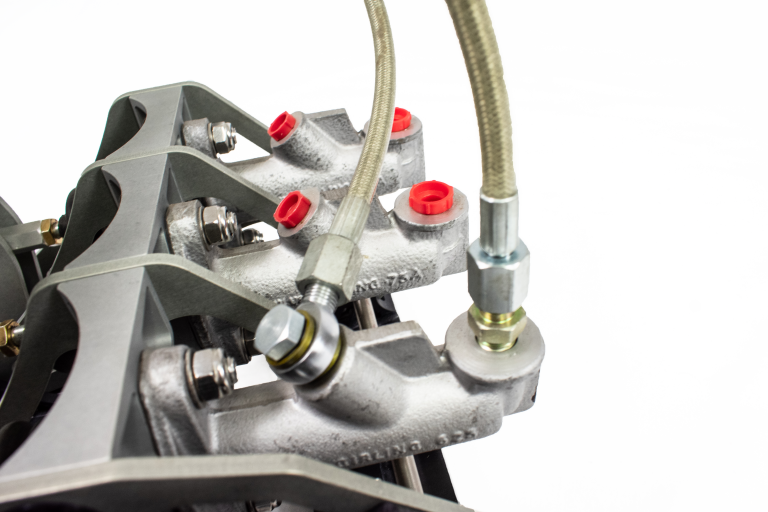

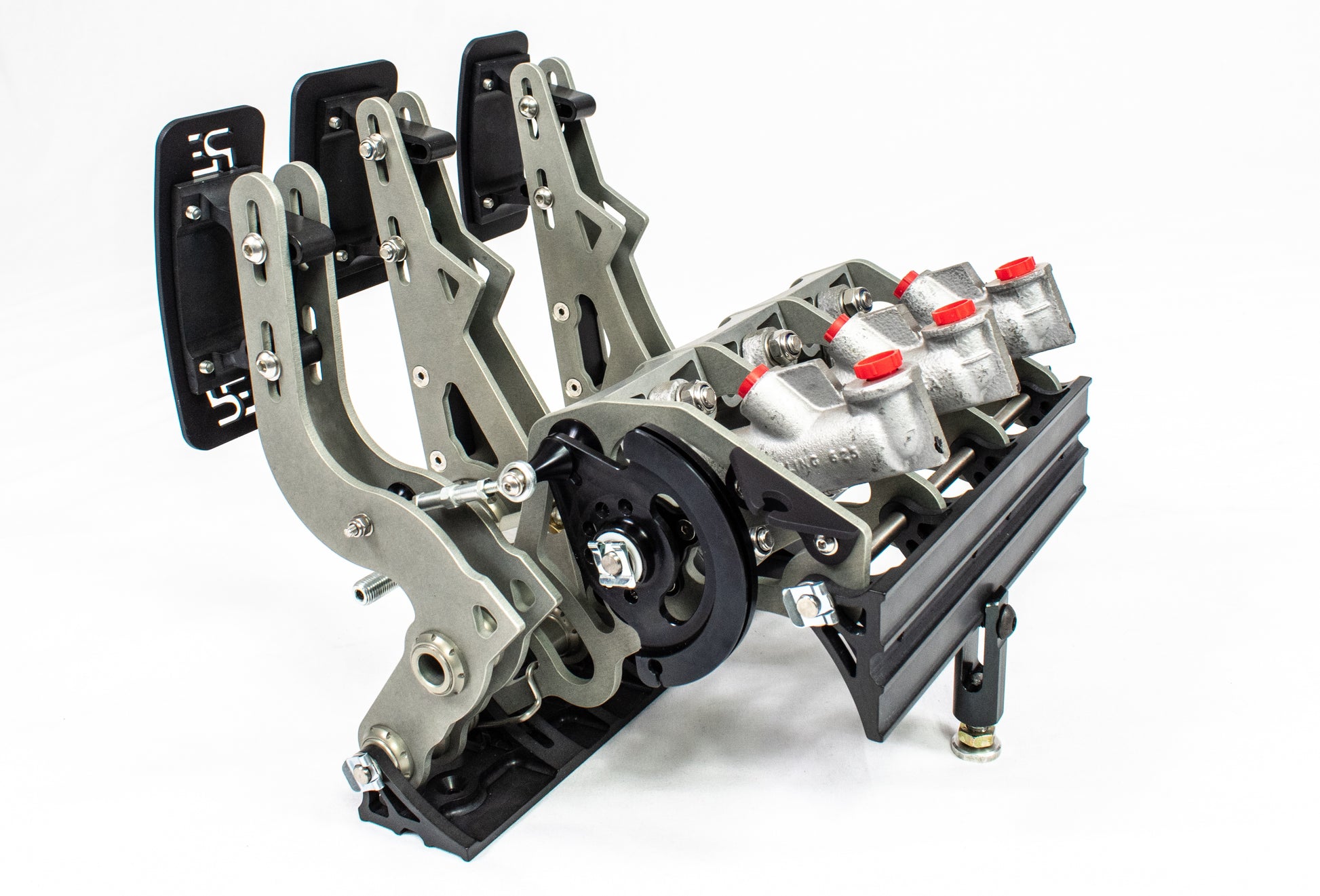

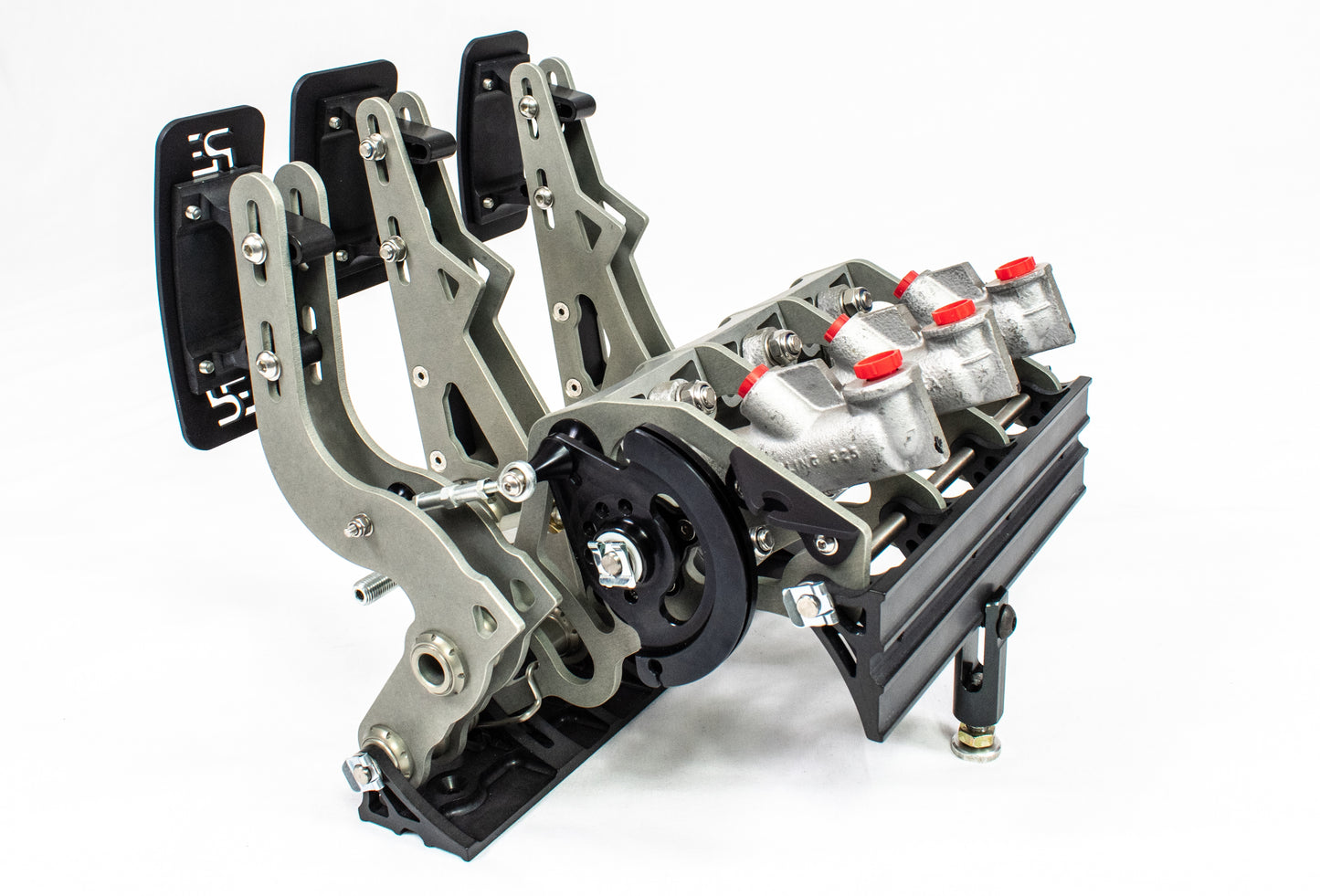

Throttle Linkage Options: Available with Cable Throttle (PE-005-1001) or Drive-by-Wire / DBW Throttle (PE-006-1001) linkage kits — sold separately. Compatible with Girling master cylinders for brake and clutch circuits.

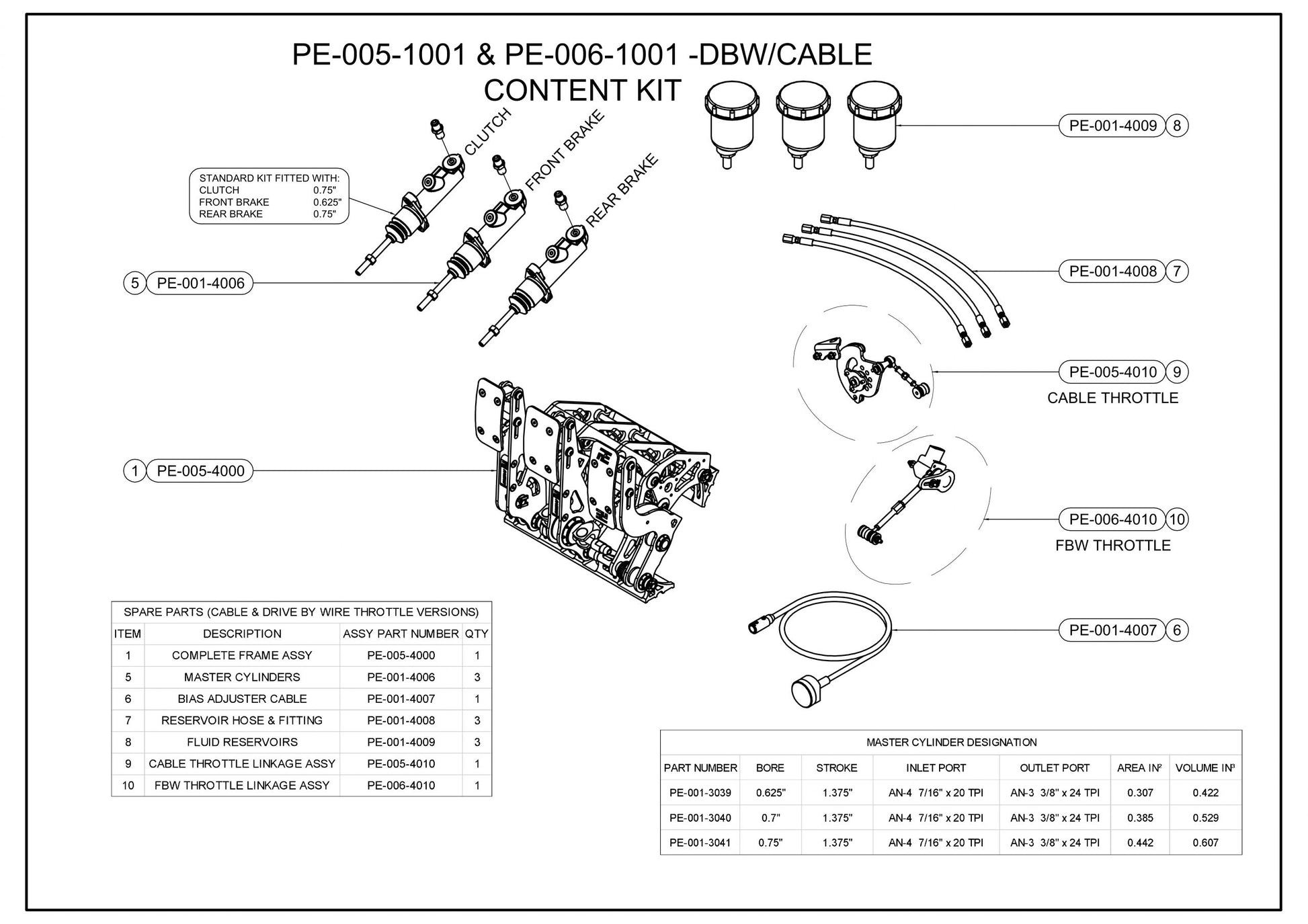

What's Included: Billet frame with Levers, Clevises, Push-rod Extenders & Balance Bar
⚠️ Not Included: Throttle Linkage Kits (Cable or DBW), Bias Adjuster Cable, Master Cylinders, Reservoirs & Hoses/Fittings — all available separately from PE Racing

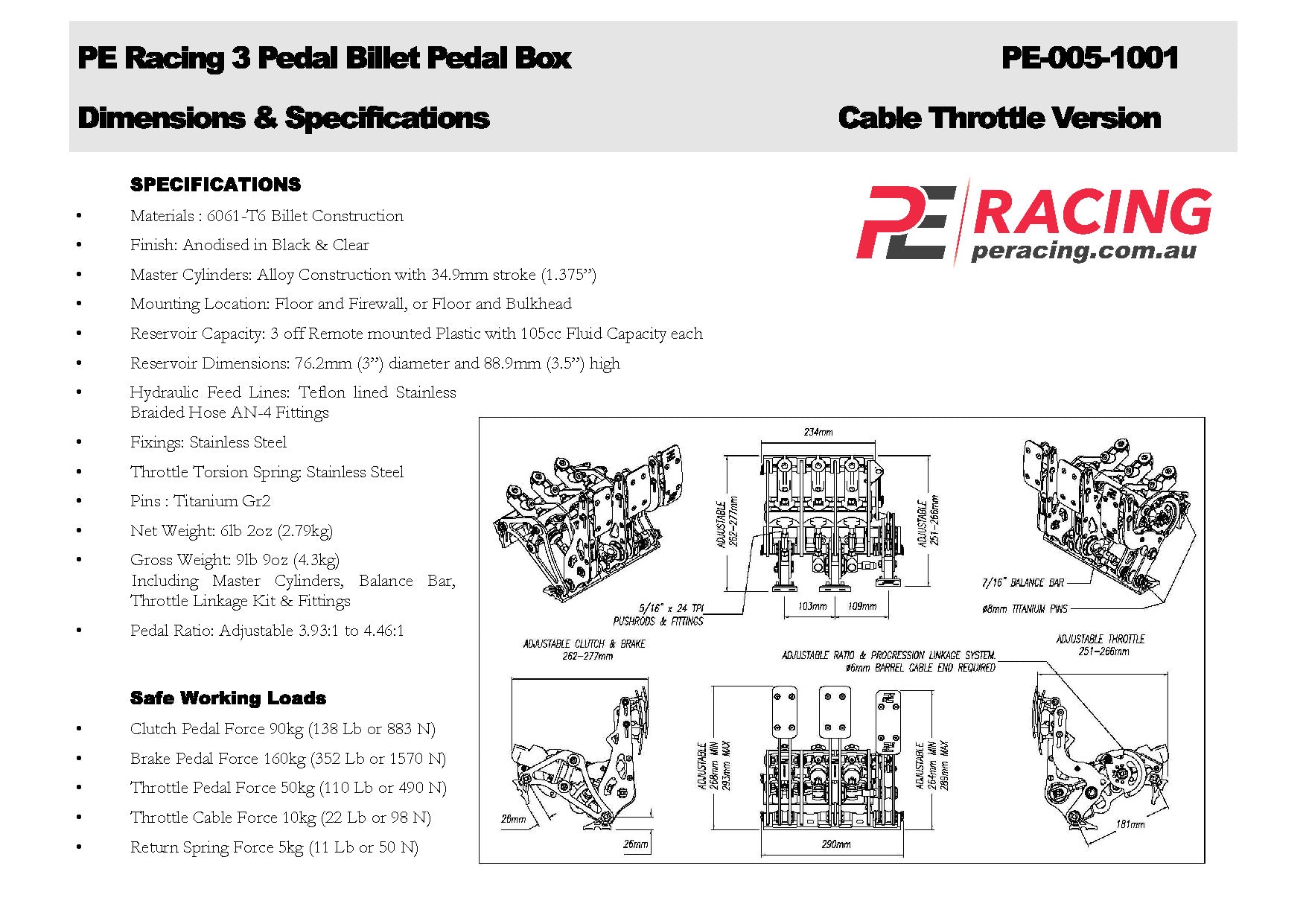

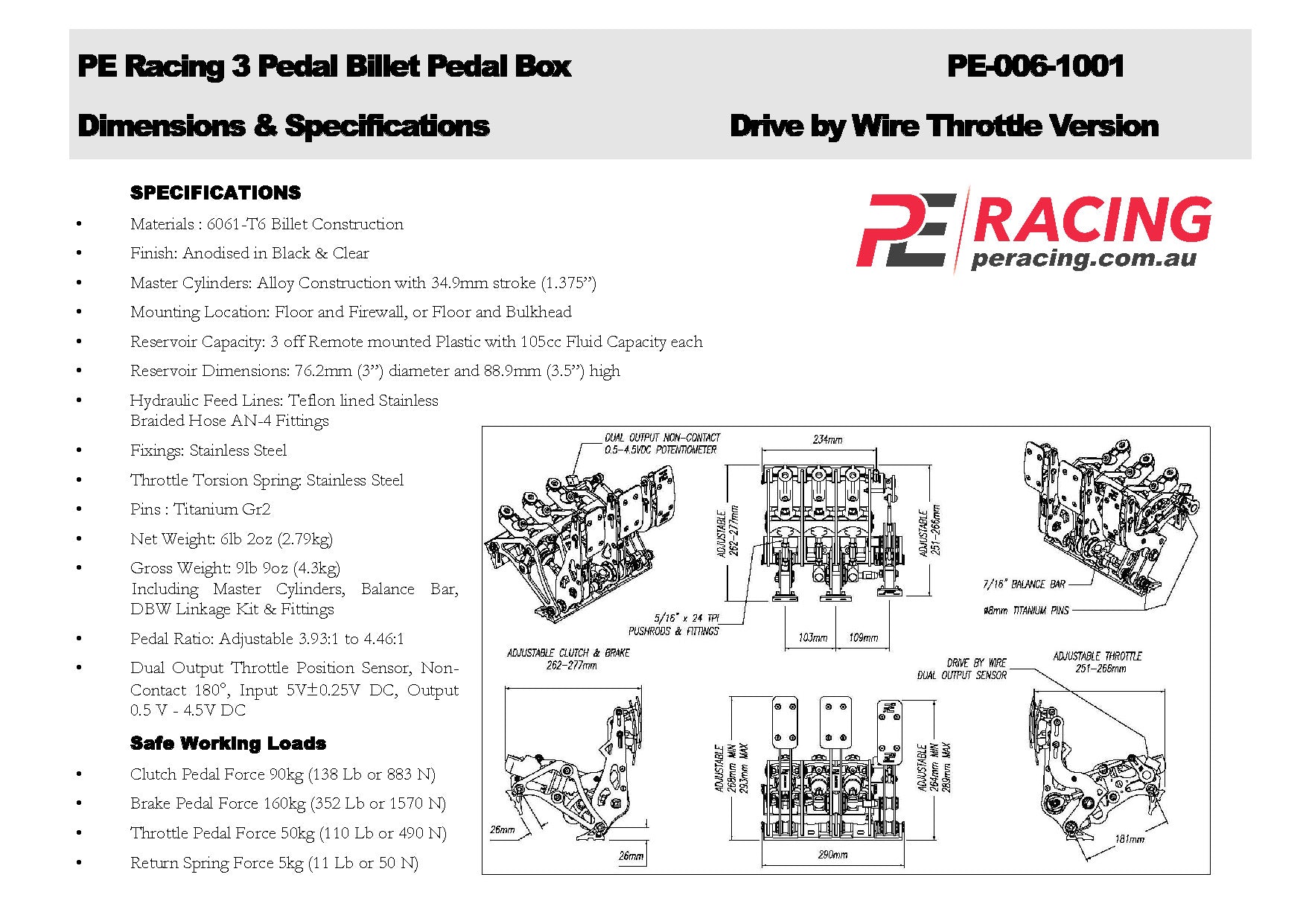

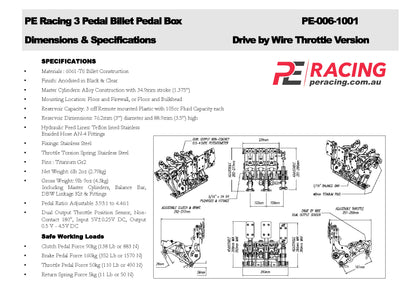

🎁 Complimentary Brake Analysis Service included with purchase — PE Racing's in-house dynamic simulation determines the ideal pedal box configuration and component sizing for your specific race vehicle. Full dimensional and technical specifications and brake analysis form available as downloadable datasheets at peracing.com.au.
Protected by Patents: US 11,390,162 B2 | AU 2015251489 | EP 3134288
Proven in physical competition since 2013 across Time Attack, Sports Sedans, Drag Racing, Drifting, Road Racing, Tarmac Rally, Gravel Rally, Off Road and more — in multiple categories and countries worldwide. Intended for race vehicles where regulations permit.
Prices are excluding GST.
