PE Racing

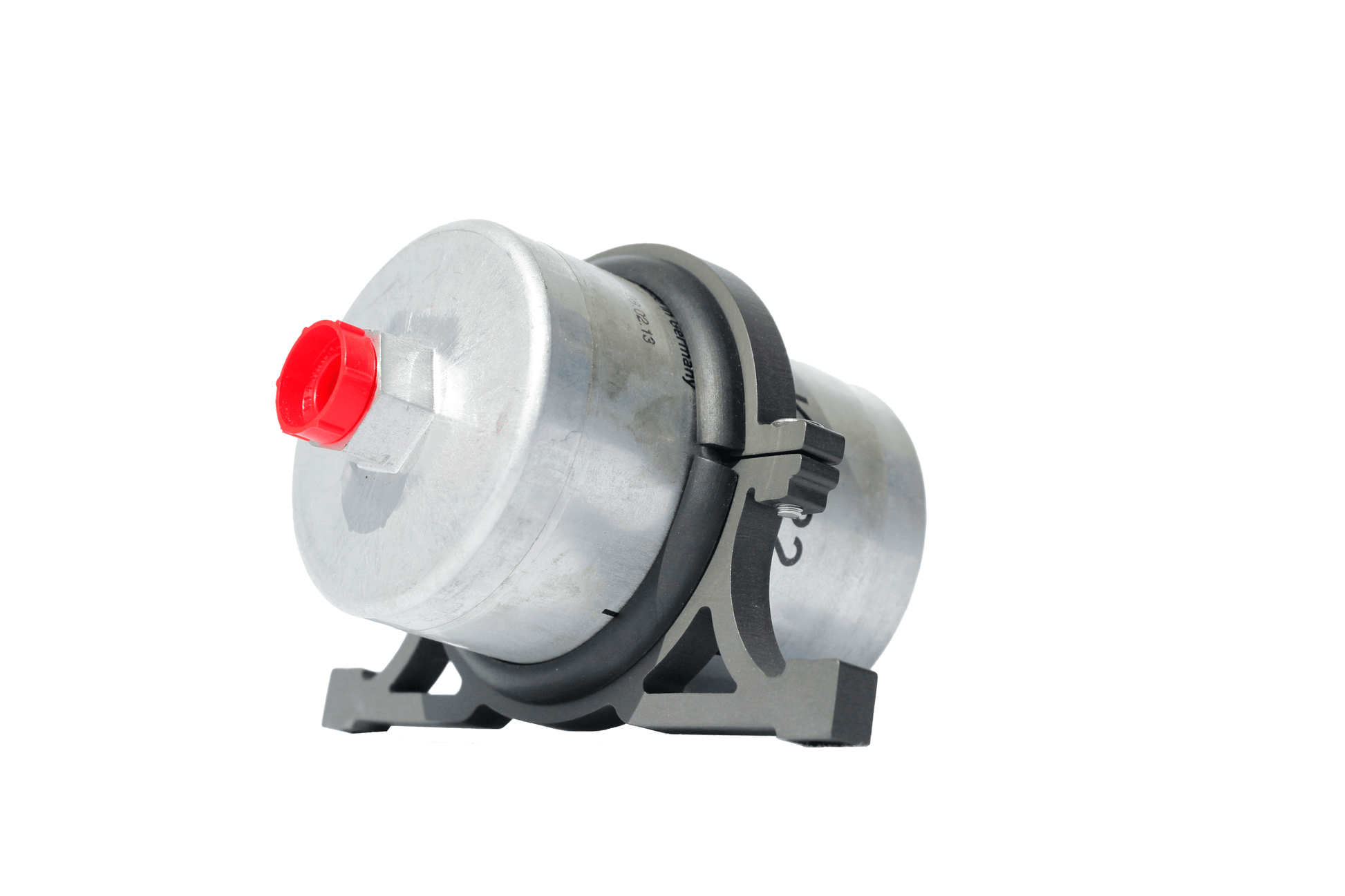

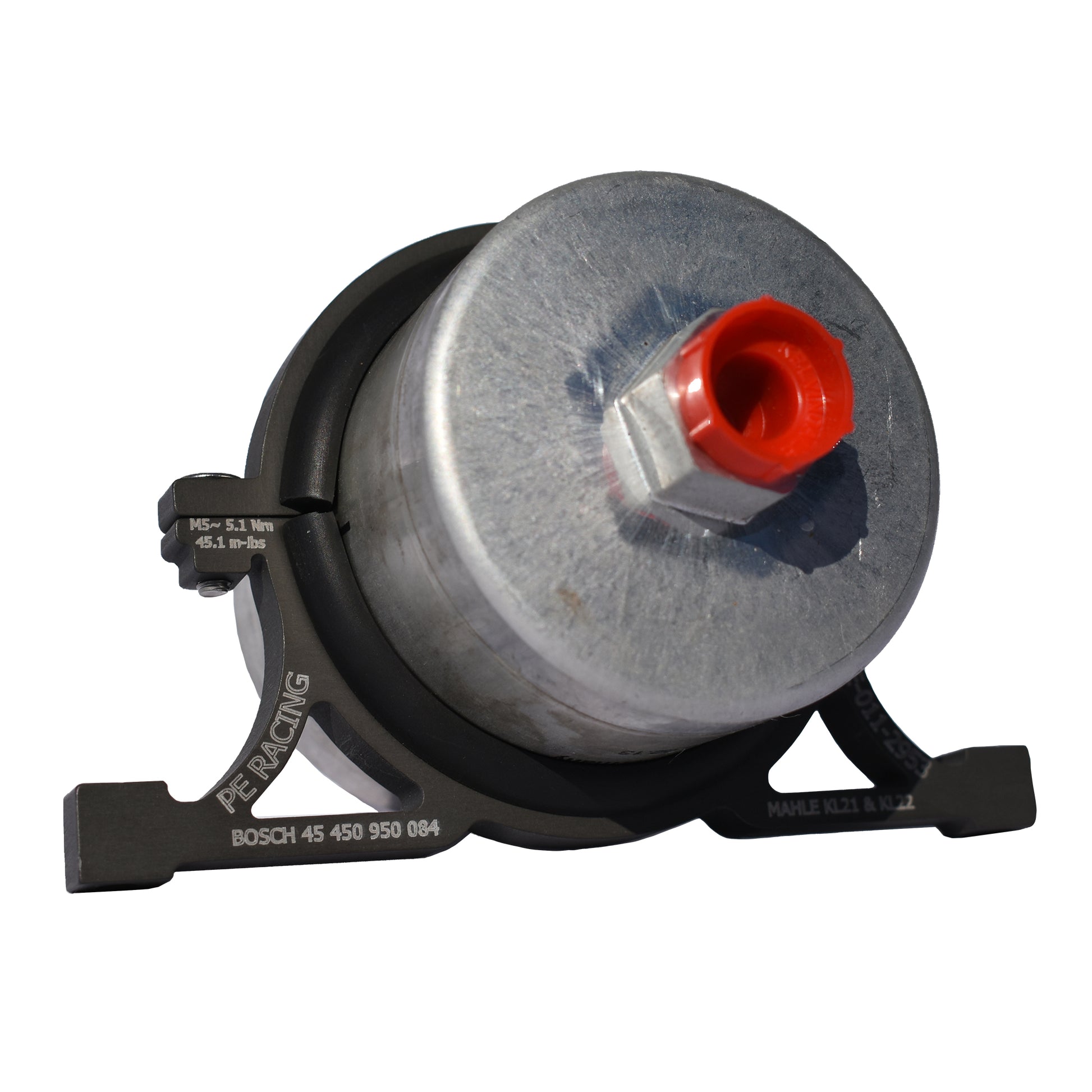

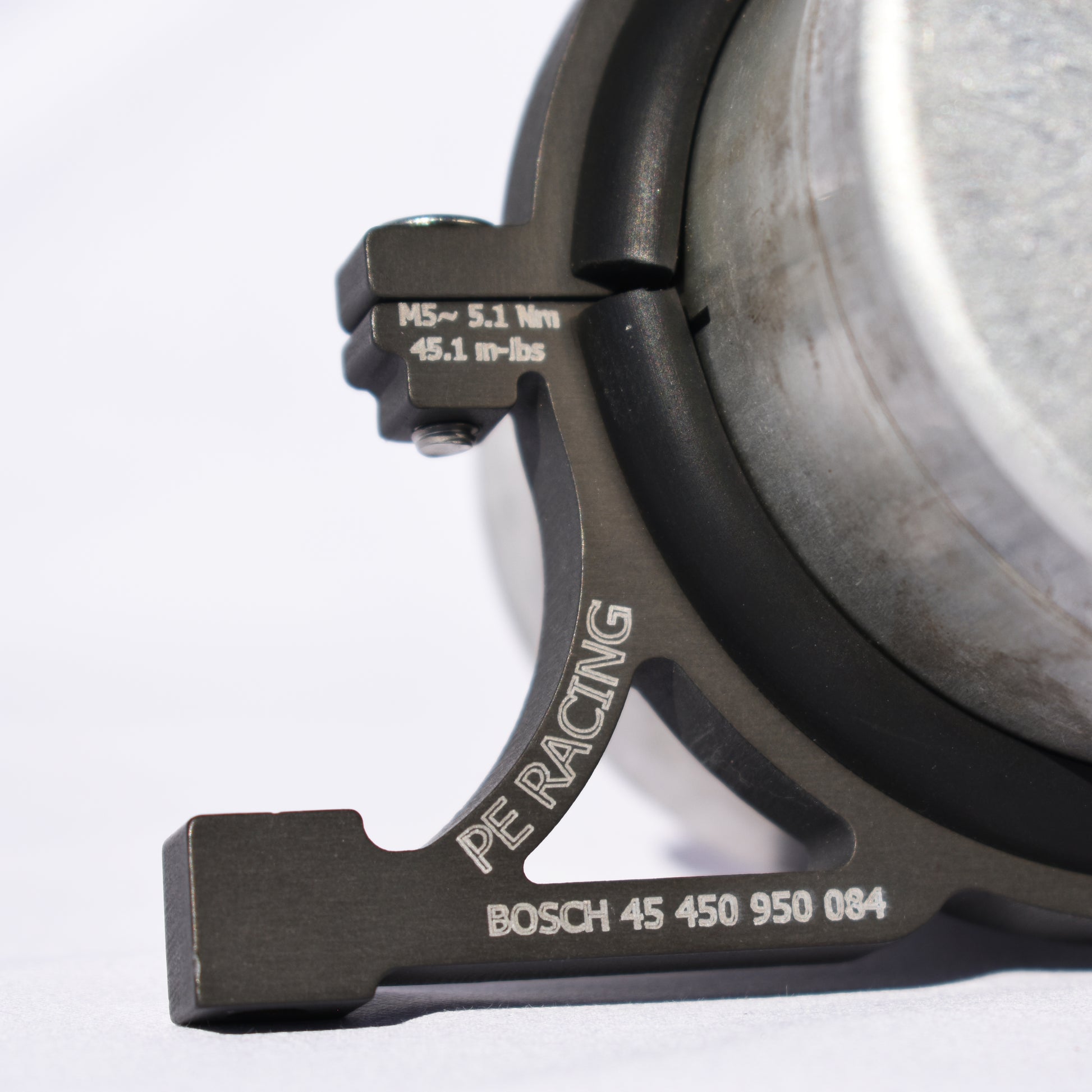

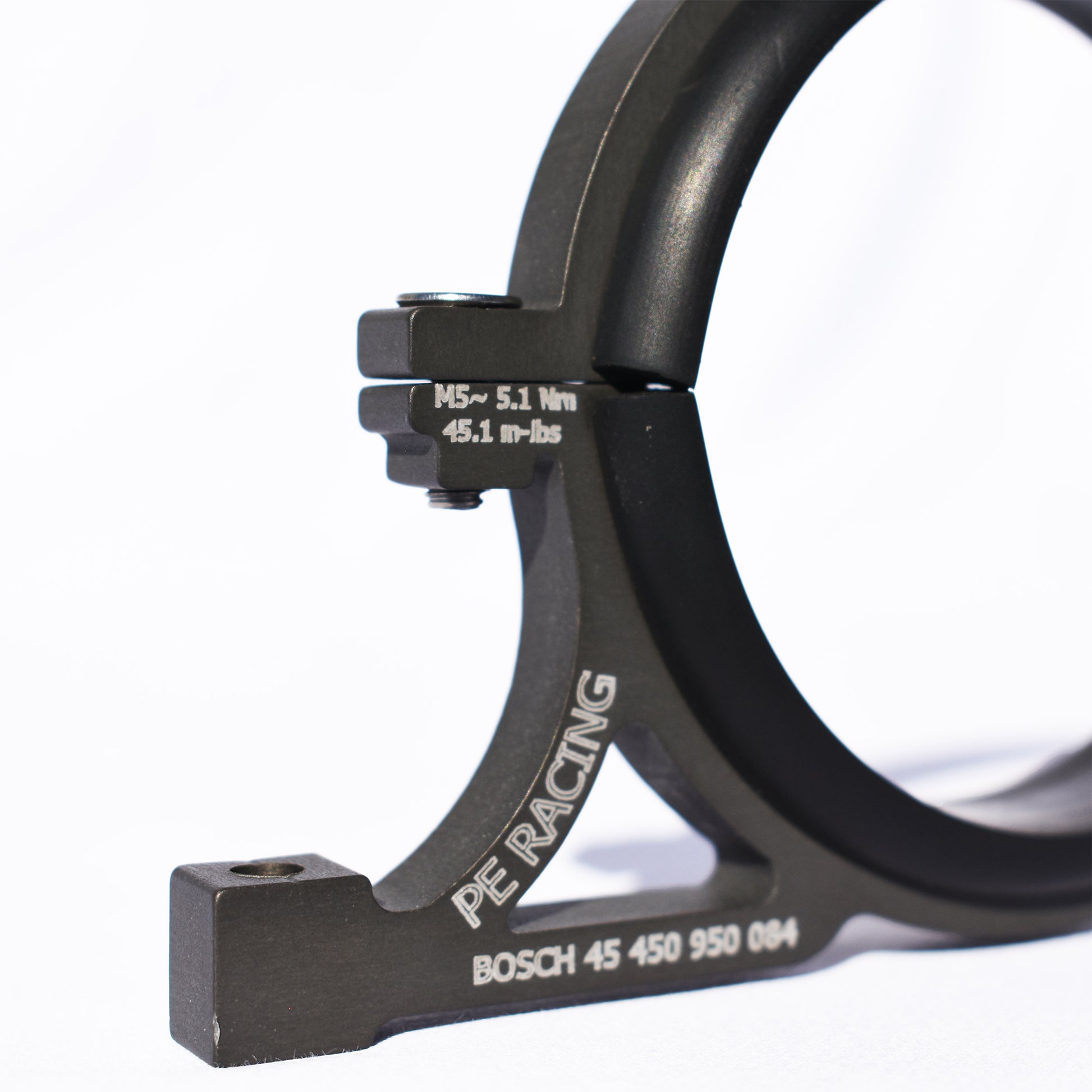

Insulated Fuel Pump/Filter Mount Bracket Clamp

Insulated Fuel Pump/Filter Mount Bracket Clamp

Regular price $53.59 AUD
Regular price Sale price $53.59 AUD
Sale Sold out

Award-winning PE Clamps

PE Fuel/Filter mounting brackets are designed to fit Bosch and Mahle products.

PE Clamps can provide an advantage over the welding by clamping the objects to the tubes as a non-permanent joint. It is easy to replace or adjust the position of clamps by simply unscrewing the clamp, unlike permanent joints. Our customised and innovative rubber mountings are provided to reduce the vibration effect. The PE line of clamps features an array of four styles which come in an assortment of various sizes.

Safer and easier install, simply unscrew the clamp, avoid the process of welding.

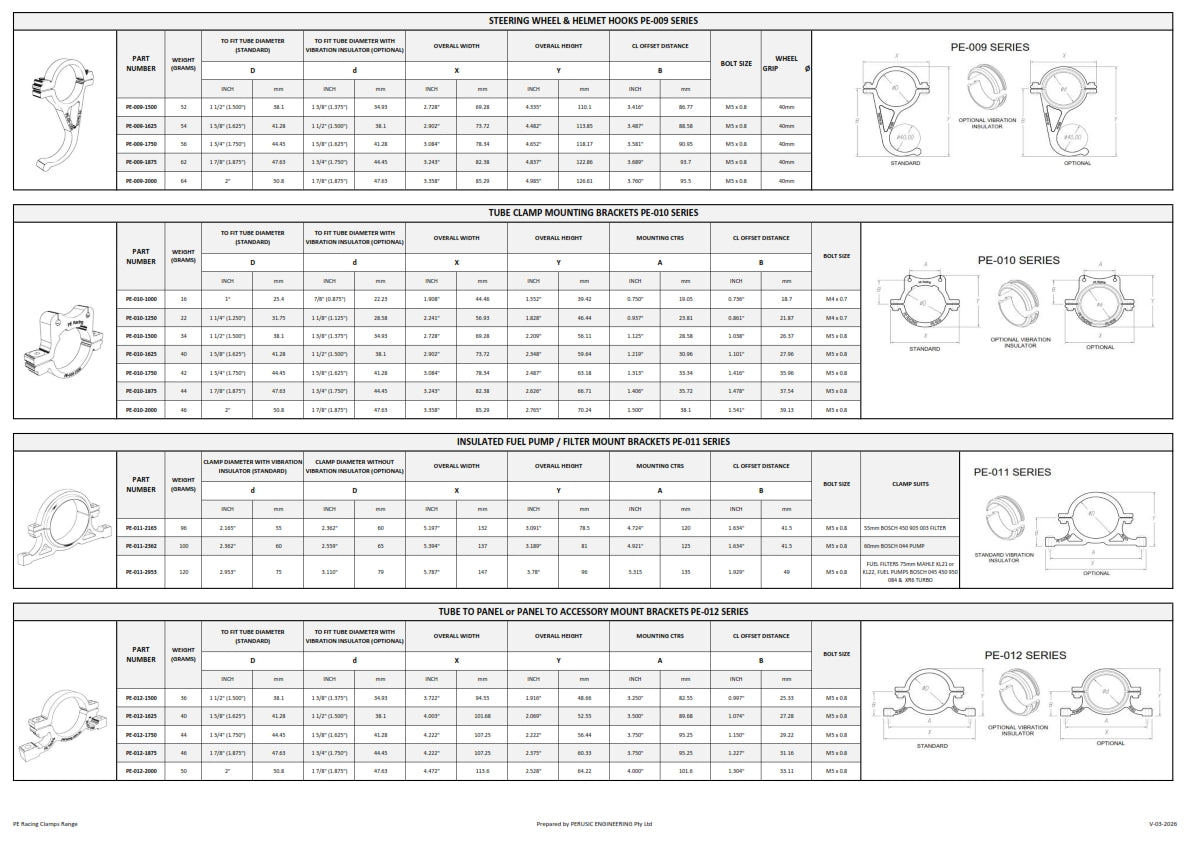

2.165″Ø 55mmØ

120mm(Bolts Ctrs)

Suits 55mm BOSCH 450 905 003 FILTER


2.362″Ø 60mmØ

125mm(Bolts Ctrs)

Suits 60mm BOSCH 044 PUMP


2.953″Ø 75mmØ

135mm(Bolts Ctrs)

Suits 75mm MAHLE KL21 or KL22 FILTER (BOSCH
045 450 950 084) XR6 TURBO

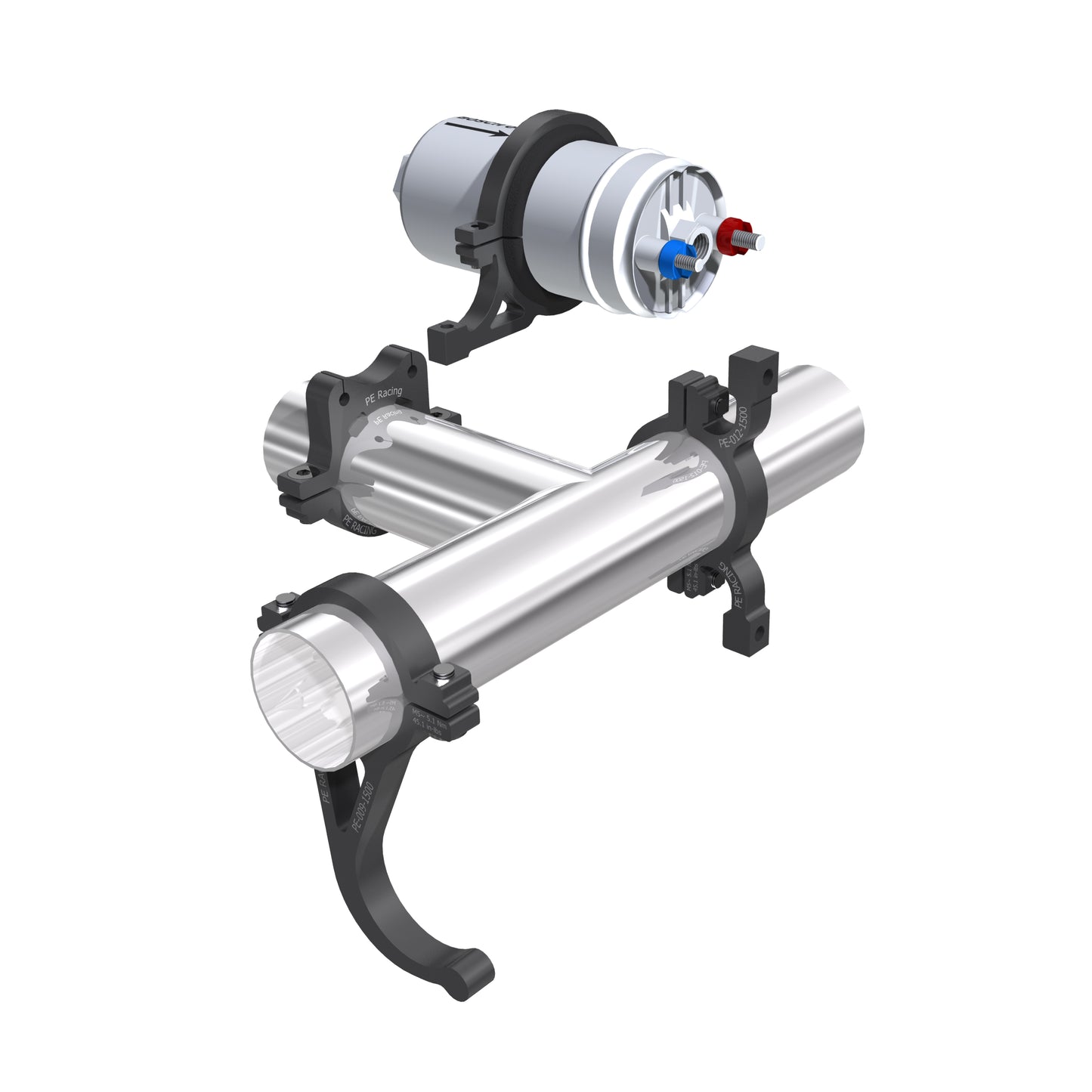

PE clamps come in four different styles and a variety of sizes to satisfy a wide range of tube mounting needs. Engineered to withstand a 10G dynamic load of 5 kg or a static load of 50 kg per clamp. The clamps have an optional vibration insulator that dampens vibration effects (NOTE: Adding the vibration insulator makes the clamp suit the next size down, except for this PE-11 range which is designed to always come with the vibration insulator). They are made of aircraft alloy with a hard anodised finish to resist the effects of harsh environments.


  • Variety of sizes
  • Safe
  • Hard anodised metal resists a highly corrosive environment
  • Eliminates the need for welding, thus sustaining the strength of the material.
  • Consumes less storage space
  • Temporary
  • Affordable
  • High-Quality Material
  • Faster Mounting, easy access for mounting and dismounting
  • Easy to customise. Add your own products to the PE Clamps.
