Load Cell Sim Racing Pedals Kit - Professional Driver Training PE-00X-1002

PE Racing — Australian motorsport component manufacturer, specialising in competition-grade pedal assemblies and sim racing systems engineered for professional driver training. Backed by patented engineering, comprehensive technical documentation, and a decade-long track record in serious competition. Worldwide Shipping.

⚠️ Pedal Assembly is NOT included — available separately in 2 or 3 Pedal Billet versions.

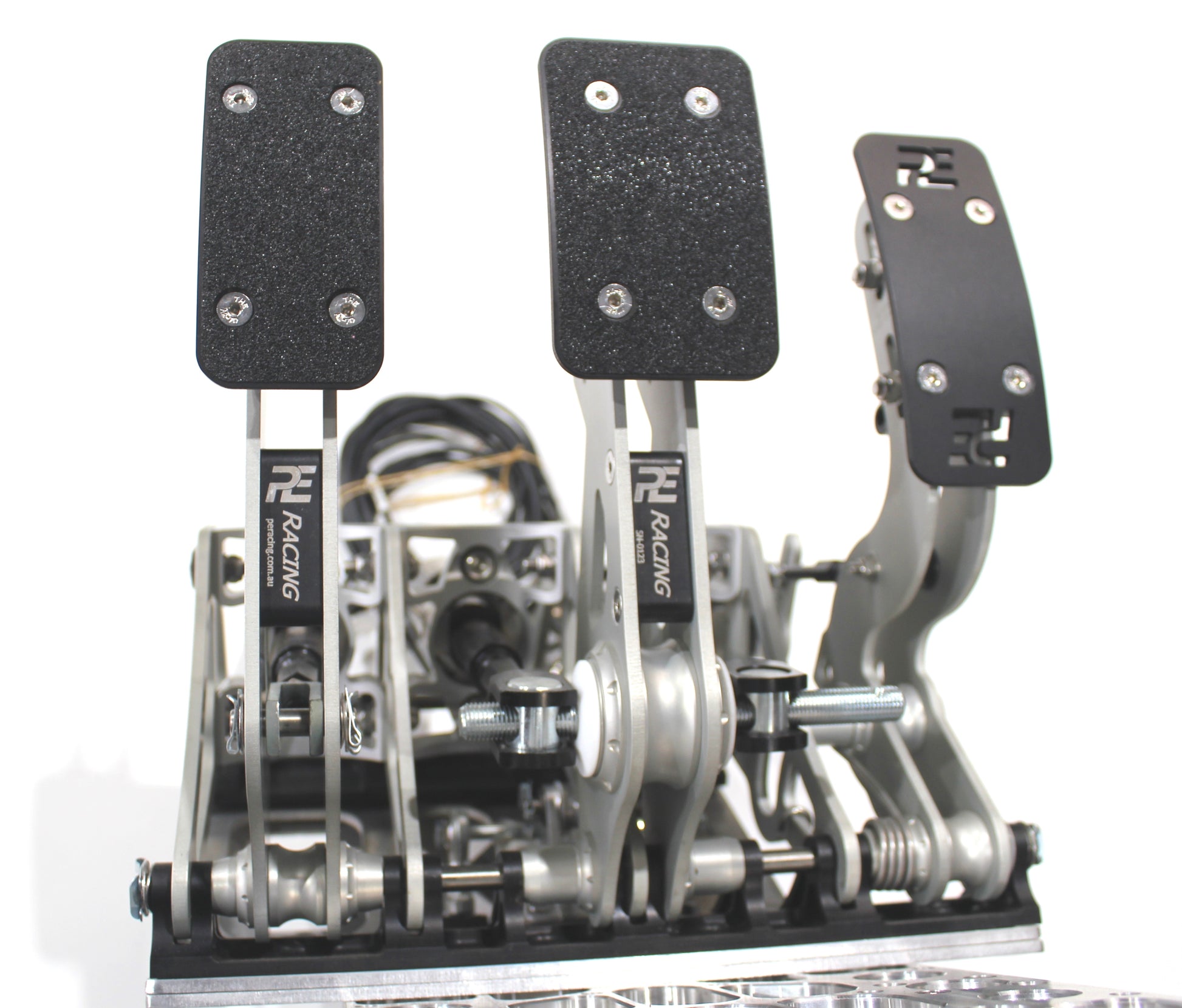

• Engineered to suit the Patented PE Racing Billet Pedal Box — giving drivers the identical pedal setup in the simulator and in the race car for true professional driver training

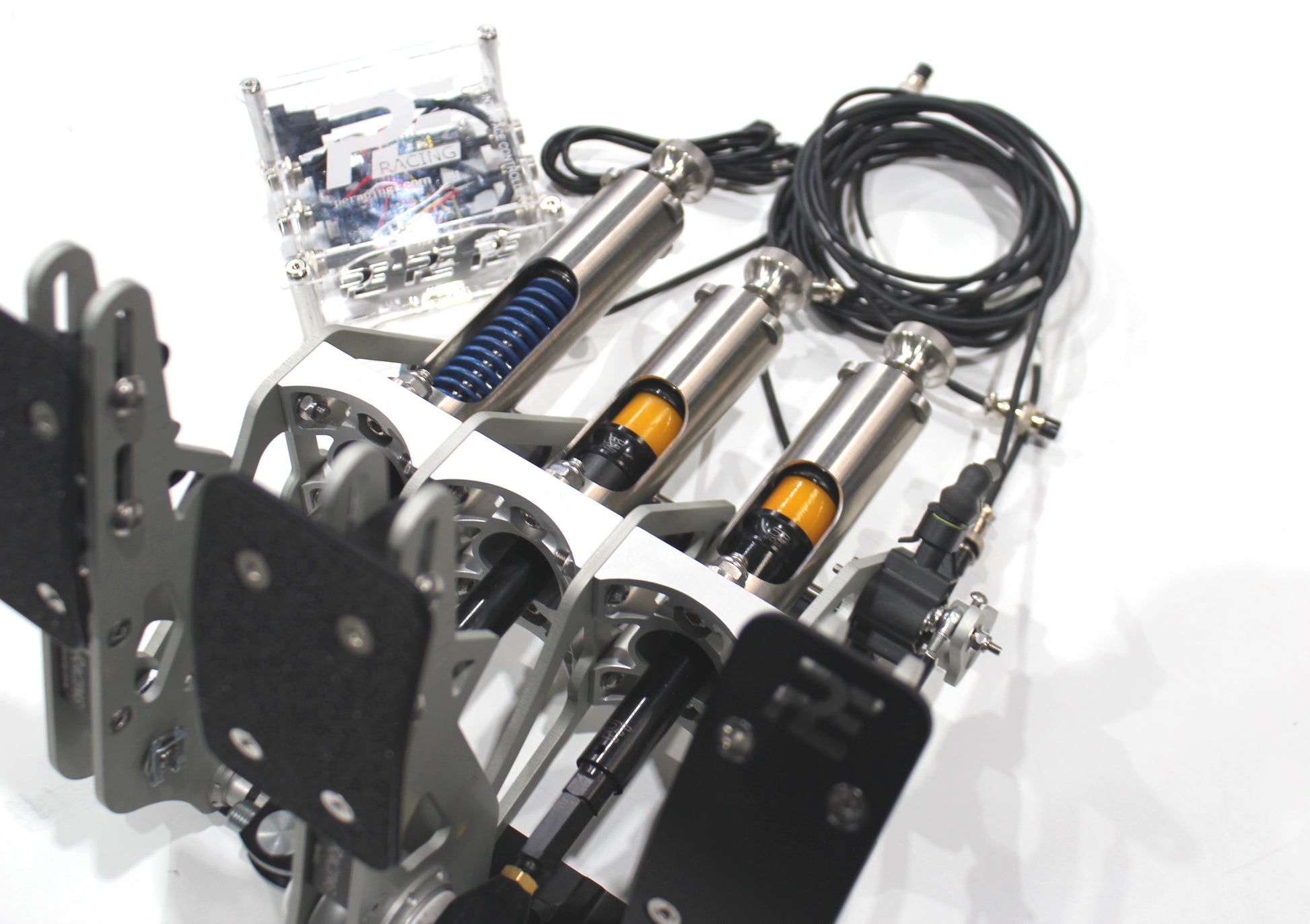

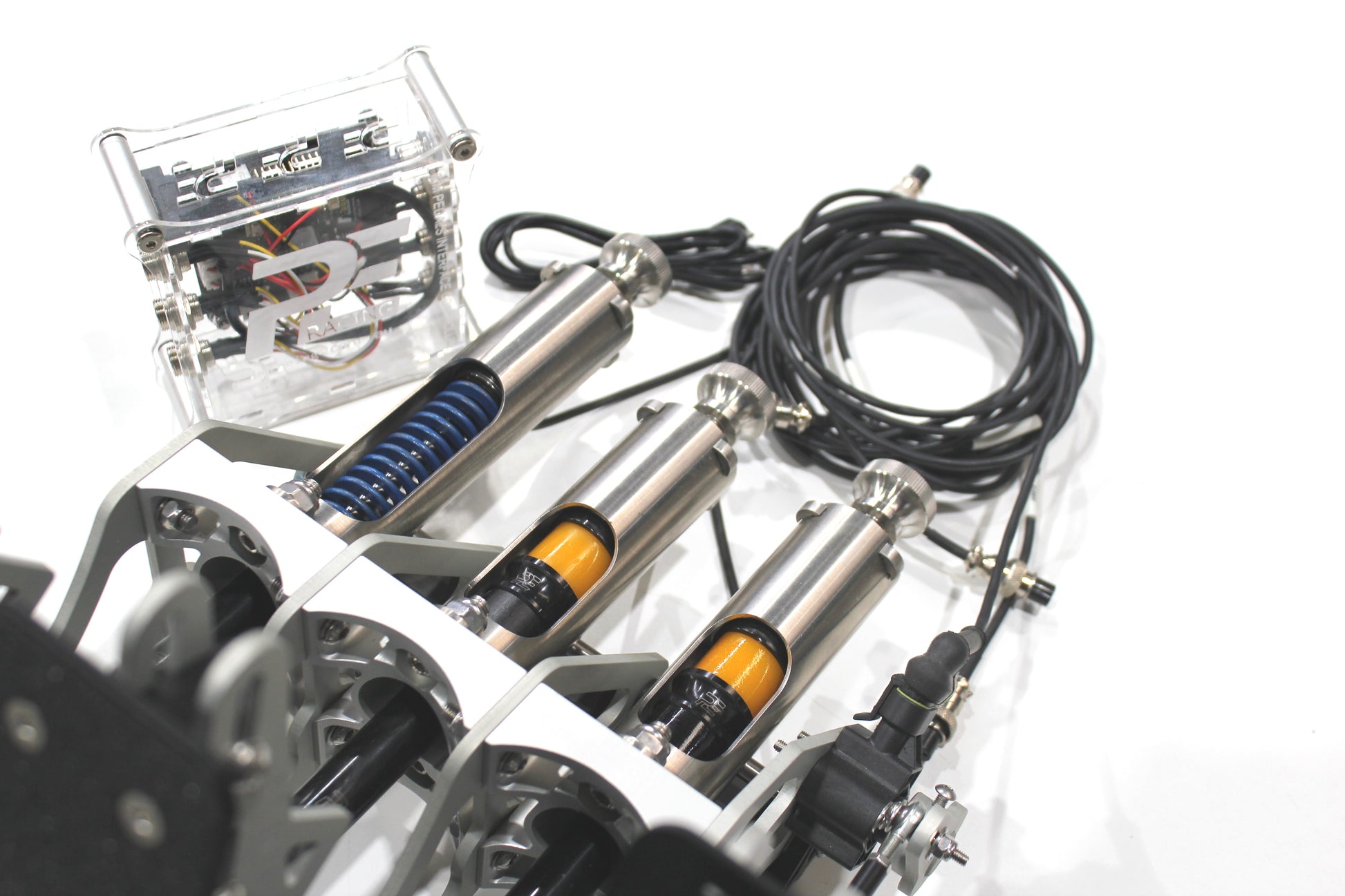

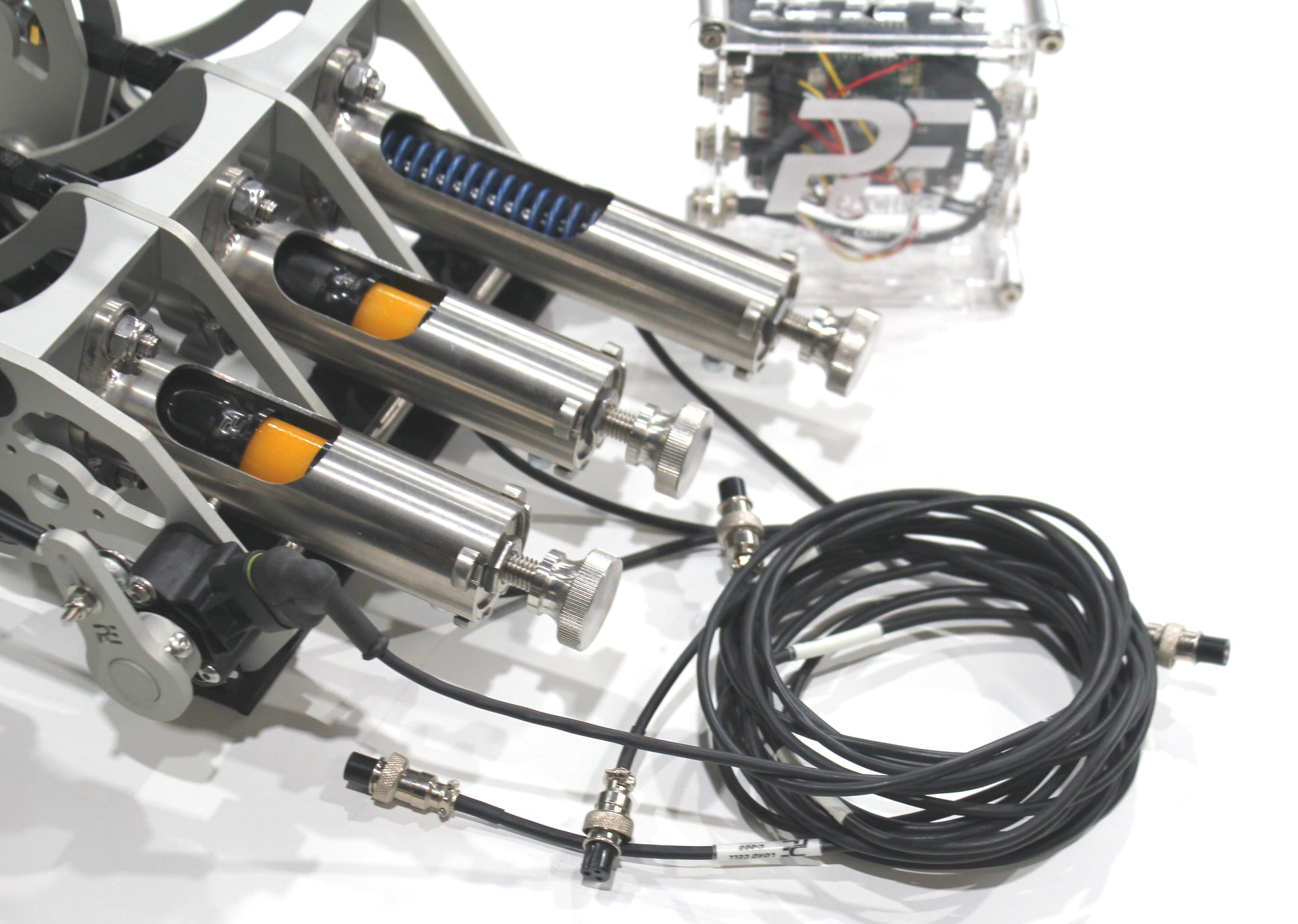

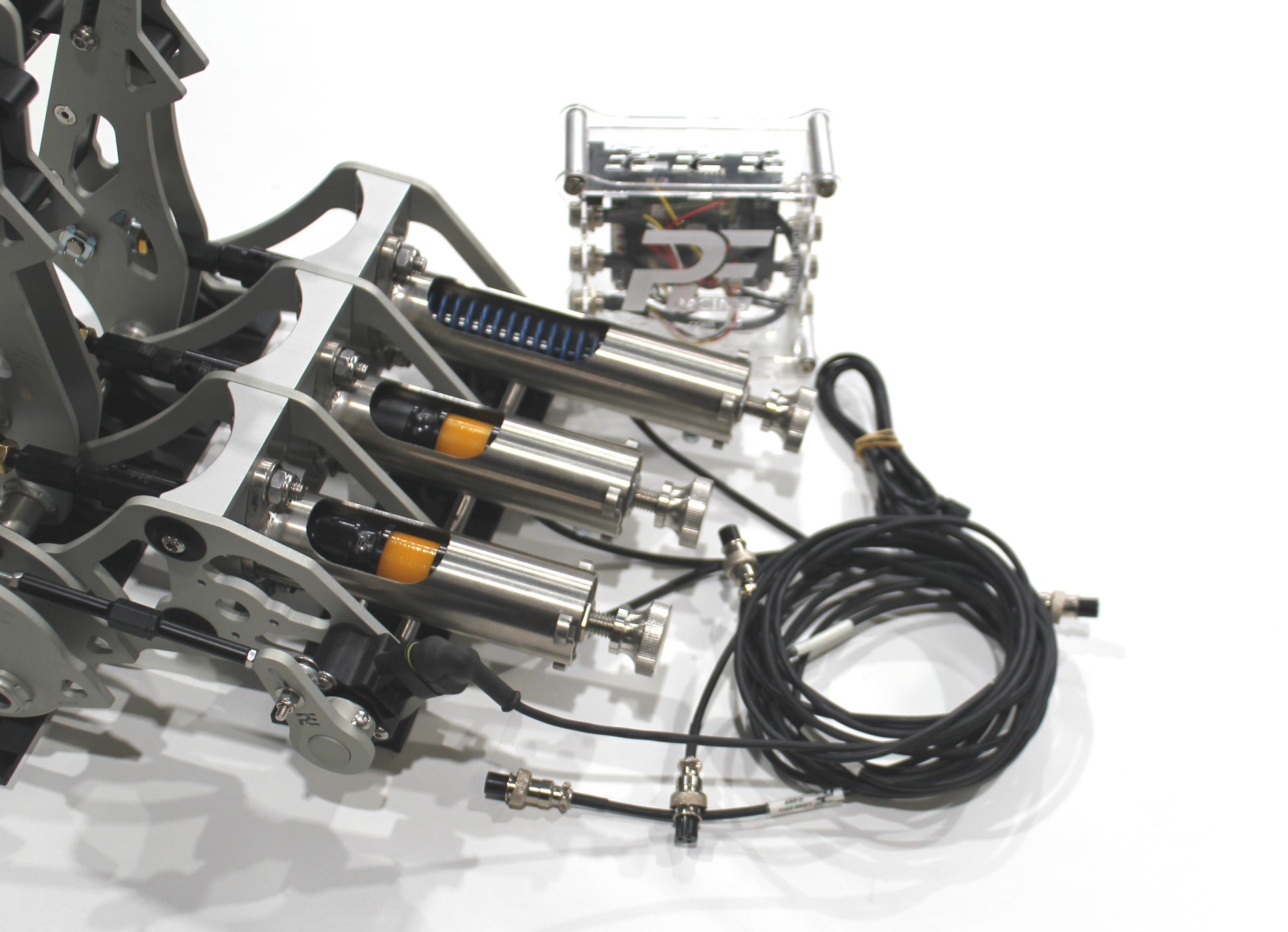

• PE Sim Cylinders constructed from stainless steel and aircraft alloy — Girling style mounting, engineered with FEA and CAD for precision and durability
• Built-in pre-load adjuster on both brake and clutch cylinders — allows fine tuning of pedal feel and resistance to precisely replicate the intended response of any race car

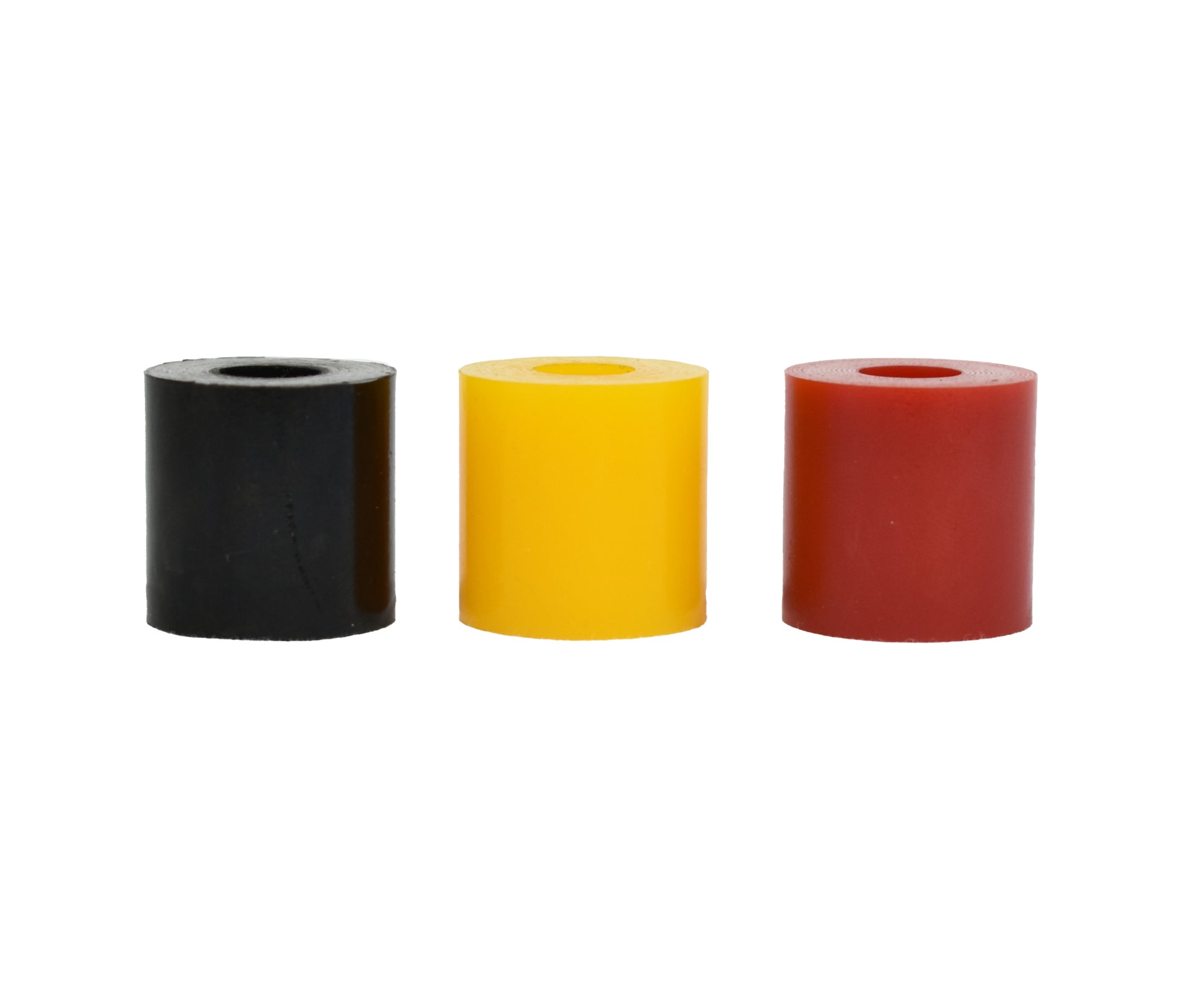

• Dual 500kg brake load cells with 3 urethane compression spring variants (Soft, Medium & Hard — 4 of each) — mix and match combinations to simulate the full scope of brake pedal feel from any race car
• Non-contact throttle position sensor — 120° rotation, 5V input, 0.5–4.5V DC output

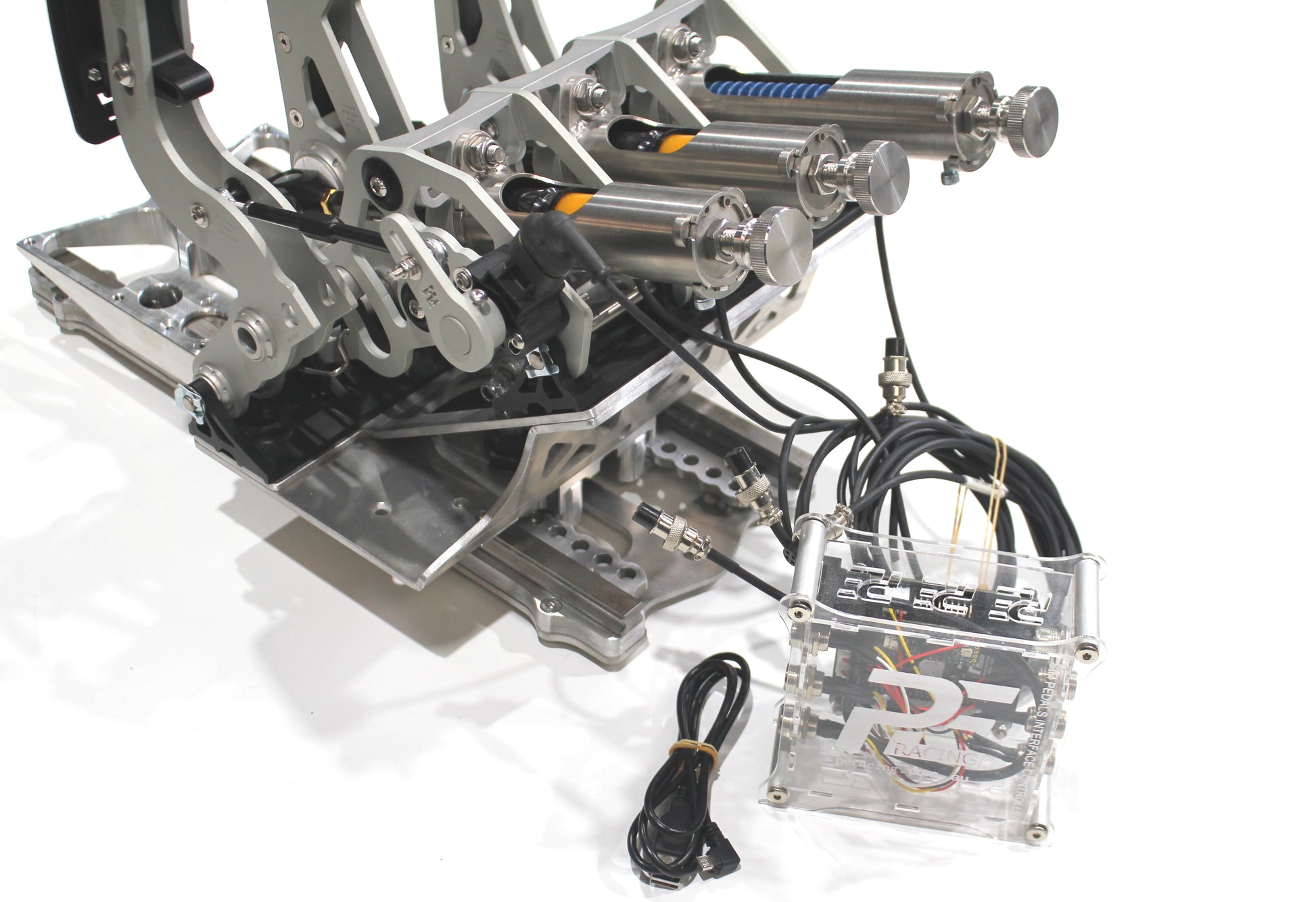

• USB interface controller with inbuilt ports for clutch, brakes and throttle — plug and play PC connection, compatible with iRacing, Assetto Corsa, ACC, rFactor 2, and all major sim racing platforms
• Highly sensitive and reliable load cells — drivers have described the feel as “like the hydraulic pedal set” and “comfortable, rock-solid and trusted”
• Available in 2 Pedal (Auto) and 3 Pedal (Manual with 200kg clutch load cell) configurations

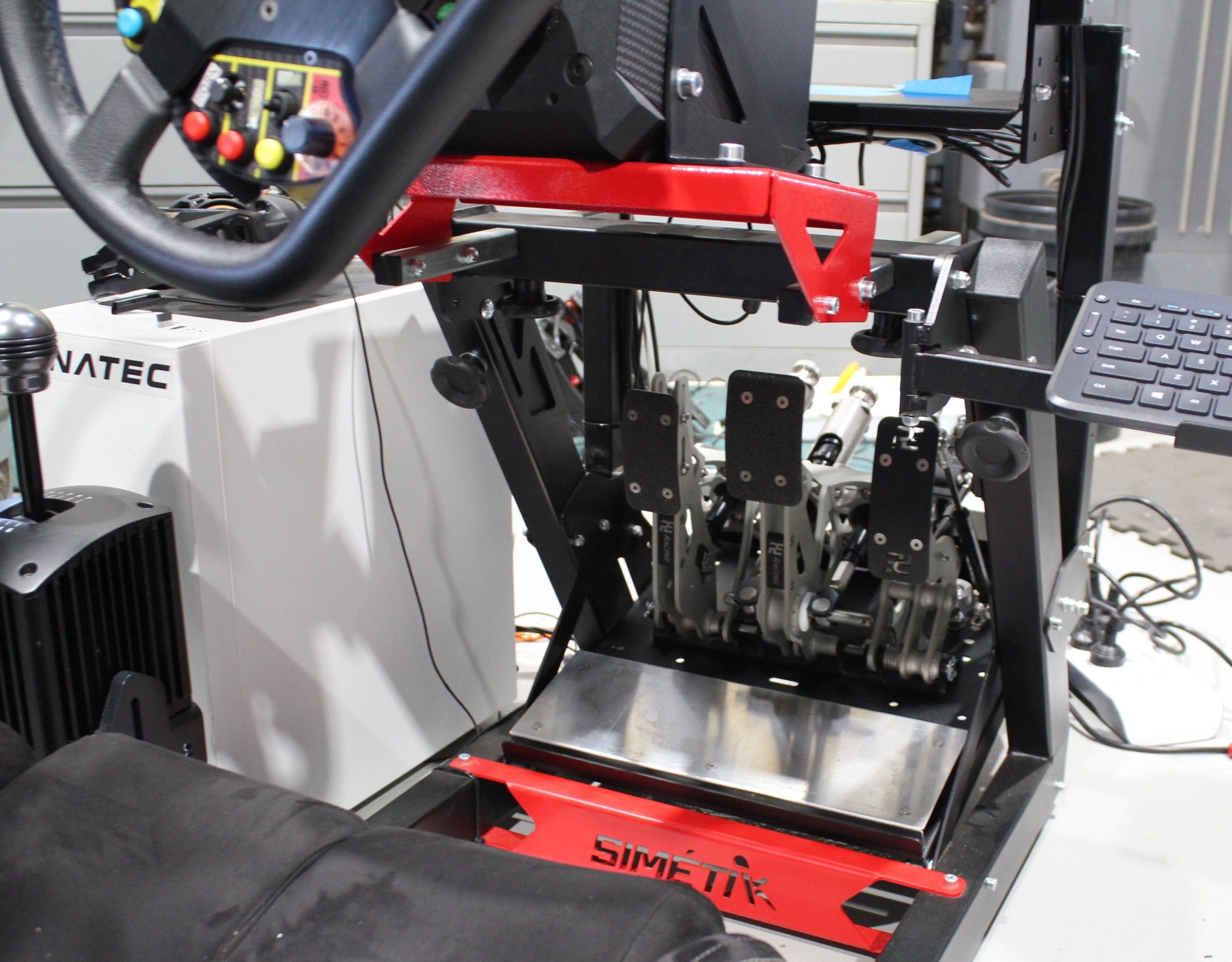

• Compatible with sim rigs from Fanatec, Simucube, and custom direct drive setups — mounts to the PE Racing Billet Pedal Box frame

3 Pedal Manual Kit includes:

• 1x Throttle Position Sensor Kit
• 2x Brake Cylinder Kits
• 3x Urethane Brake Compression Spring variants (Soft/Medium/Hard, 4 of each)
• 1x Clutch Cylinder Kit

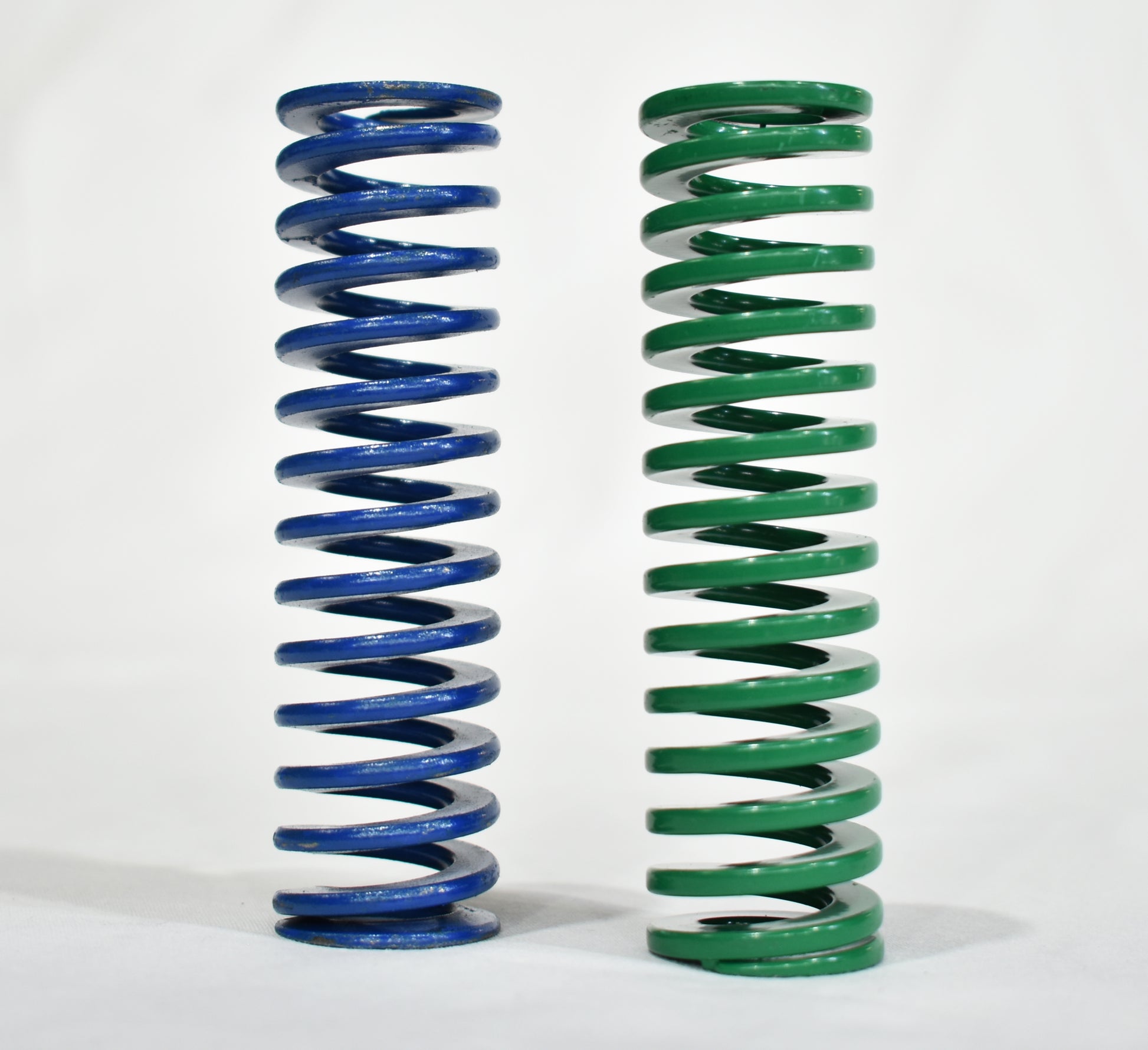

• 2x Clutch Compression Spring variants (Soft/Medium, 1 of each)
• 1x PE Sim Controller & Cables

2 Pedal Auto Kit includes:

• 1x Throttle Position Sensor Kit
• 2x Brake Cylinder Kits
• 3x Urethane Brake Compression Spring variants (Soft/Medium/Hard, 4 of each)
• 1x PE Sim Controller & Cables

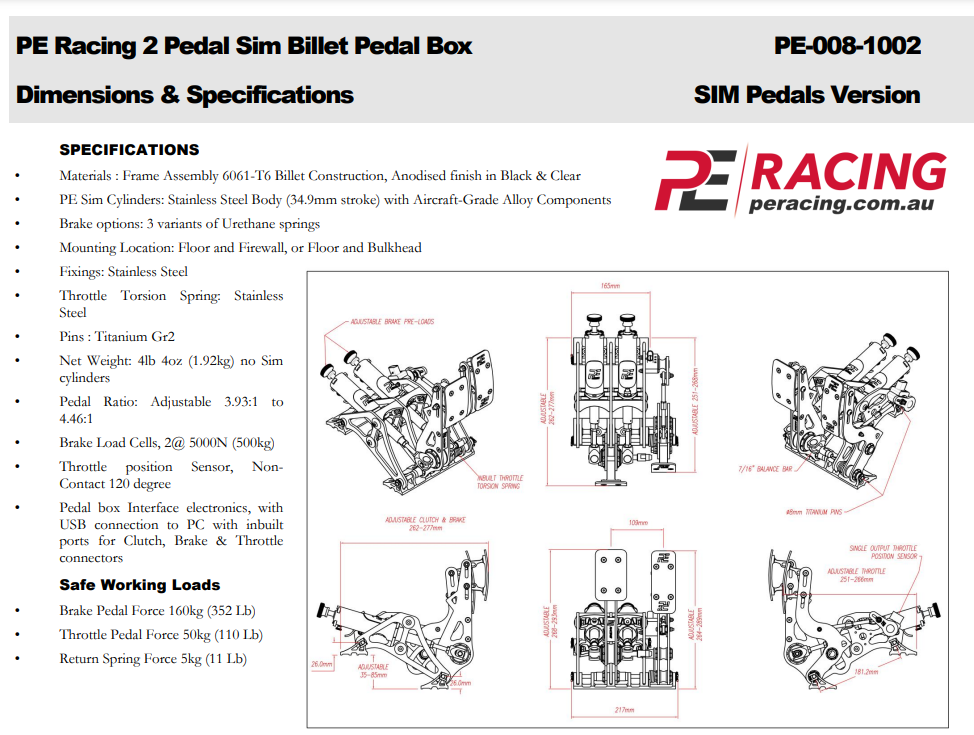

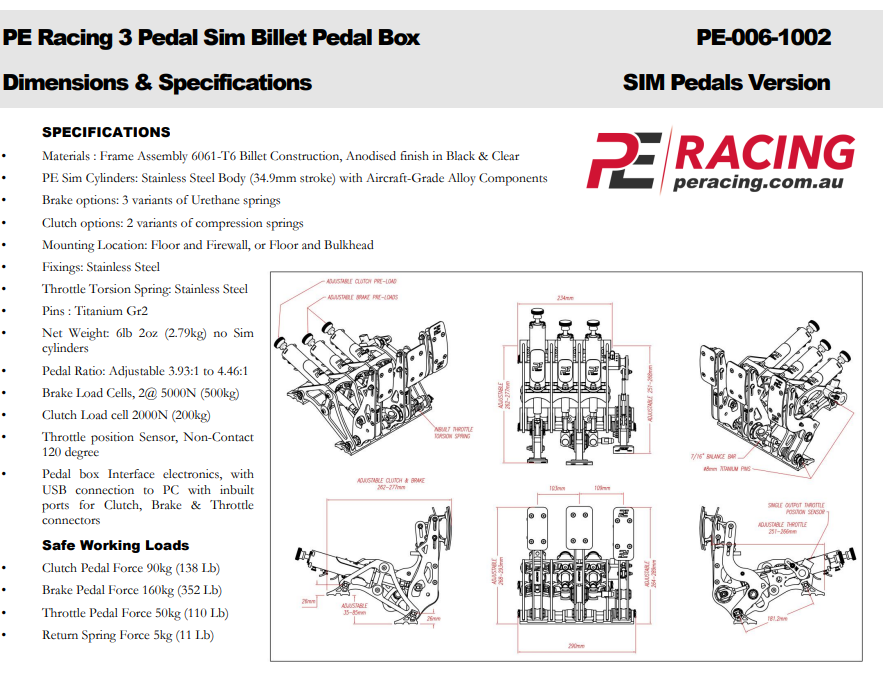

Full dimensional and technical specifications are available in the product images and downloadable datasheet at peracing.com.au.

Protected by Patents: US 11,390,162 B2 | AU 2015251489 | EP 3134288

Proven in physical competition since 2013 across Time Attack, Sports Sedans, Drag Racing, Drifting, Road Racing, Tarmac Rally, Gravel Rally, Off Road and more — in multiple categories and countries worldwide.
